MX-5 Miata Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Control System Diagram (BP With TC)
Control System Diagram (BP With TC)

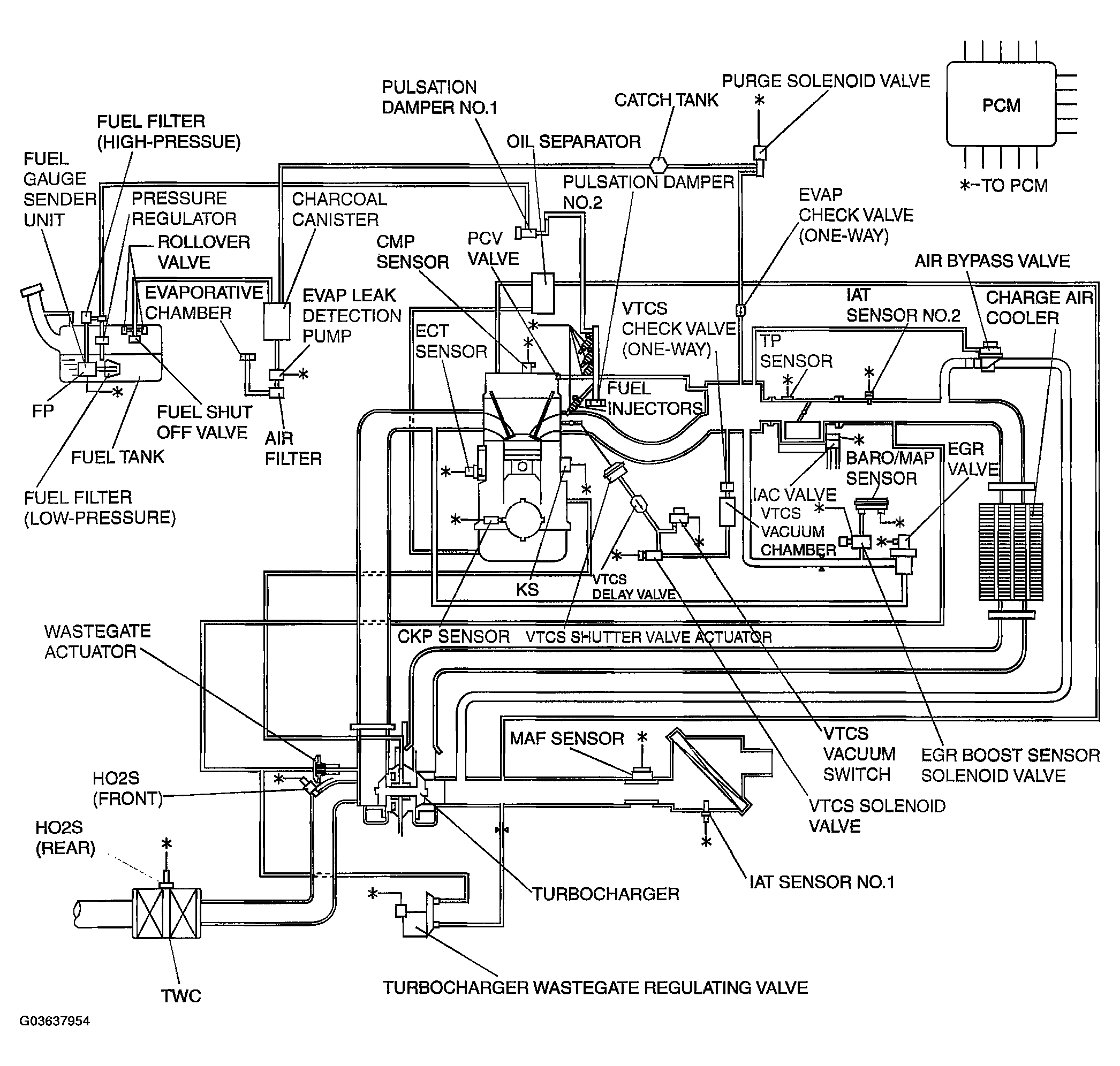

Fig 1: Identifying Control System Diagram (BP With TC)
