Circuit Open/Short Inspection: Notes

  1. Remove the PCM connector cover.
  2. Disconnect the PCM connector.
  3. Inspect the following wiring harness for open or short circuit (continuity check).

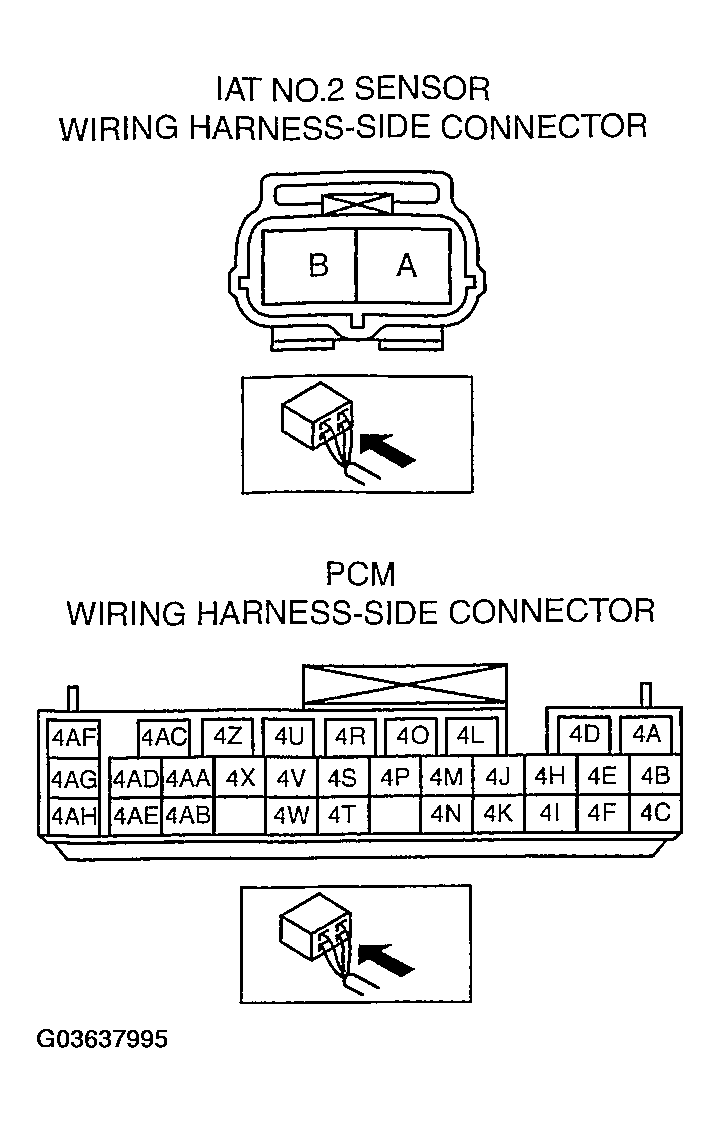

    Fig 1: Identifying PCM Connector Terminal
    G03637995Courtesy of MAZDA MOTORS CORP.
