Plate Removal/Installation

  1. Remove the drive belt.
  2. Remove the crankshaft pulley.
  3. Remove the plate.
  4. Install in the reverse order of removal.
    NOTE:

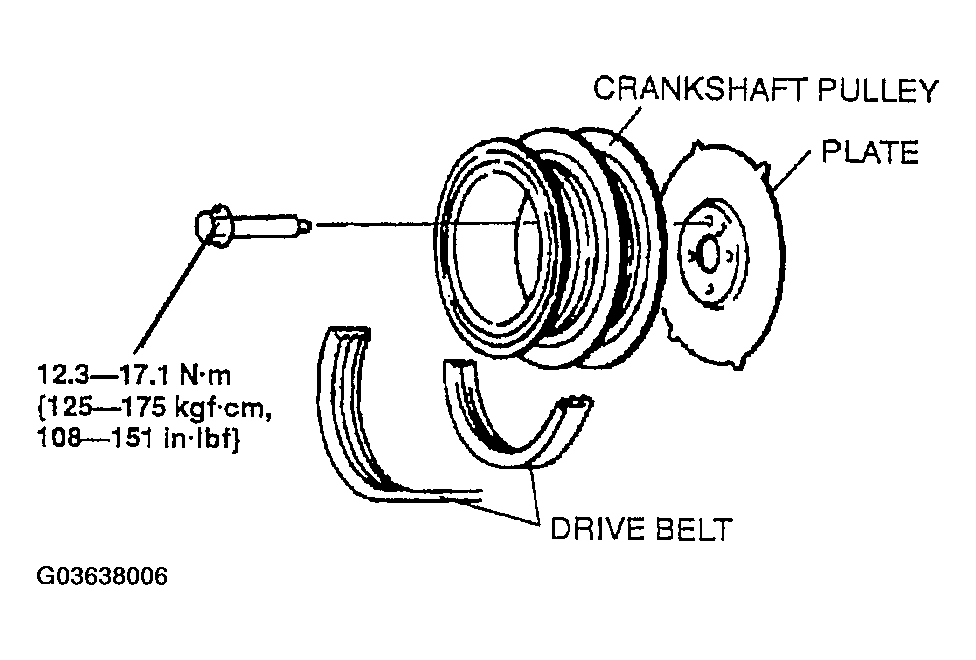

    Fig 1: Removing Crankshaft Pulley & Torque Specifications
    G03638006Courtesy of MAZDA MOTORS CORP.
