NONRETURN Valve Inspection

Remove the nonreturn valve. (See FUEL TANK REMOVAL/INSTALLATION (+)
Verify that the nonreturn valve operates under its own weight.
- If the valve does not operate, replace the nonreturn valve.

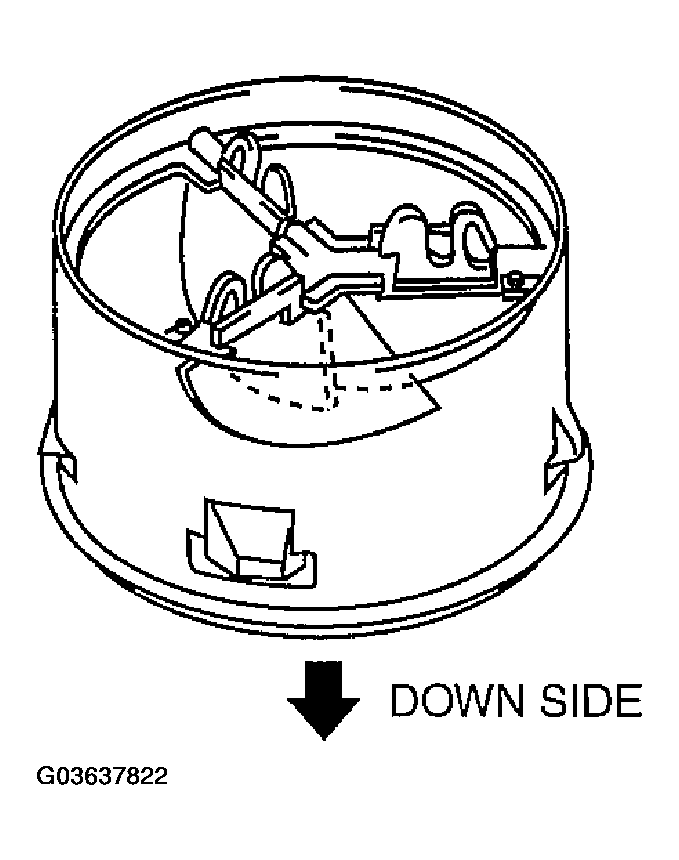

Fig 1: Removing Nonreturn Valve
Courtesy of MAZDA MOTORS CORP.
