Engine Technical Data: Notes

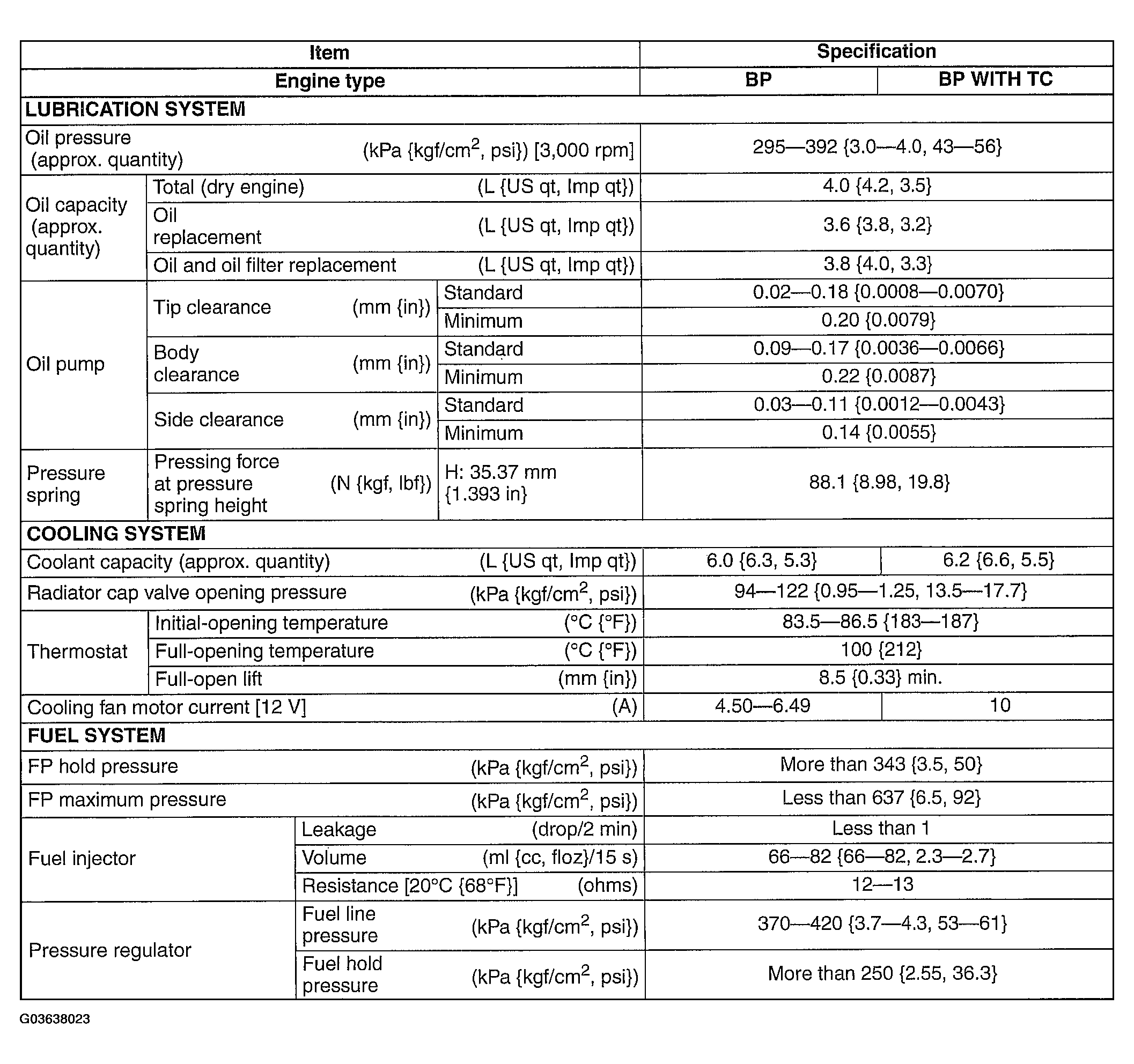

Fig 1: Engine Technical Data Chart (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

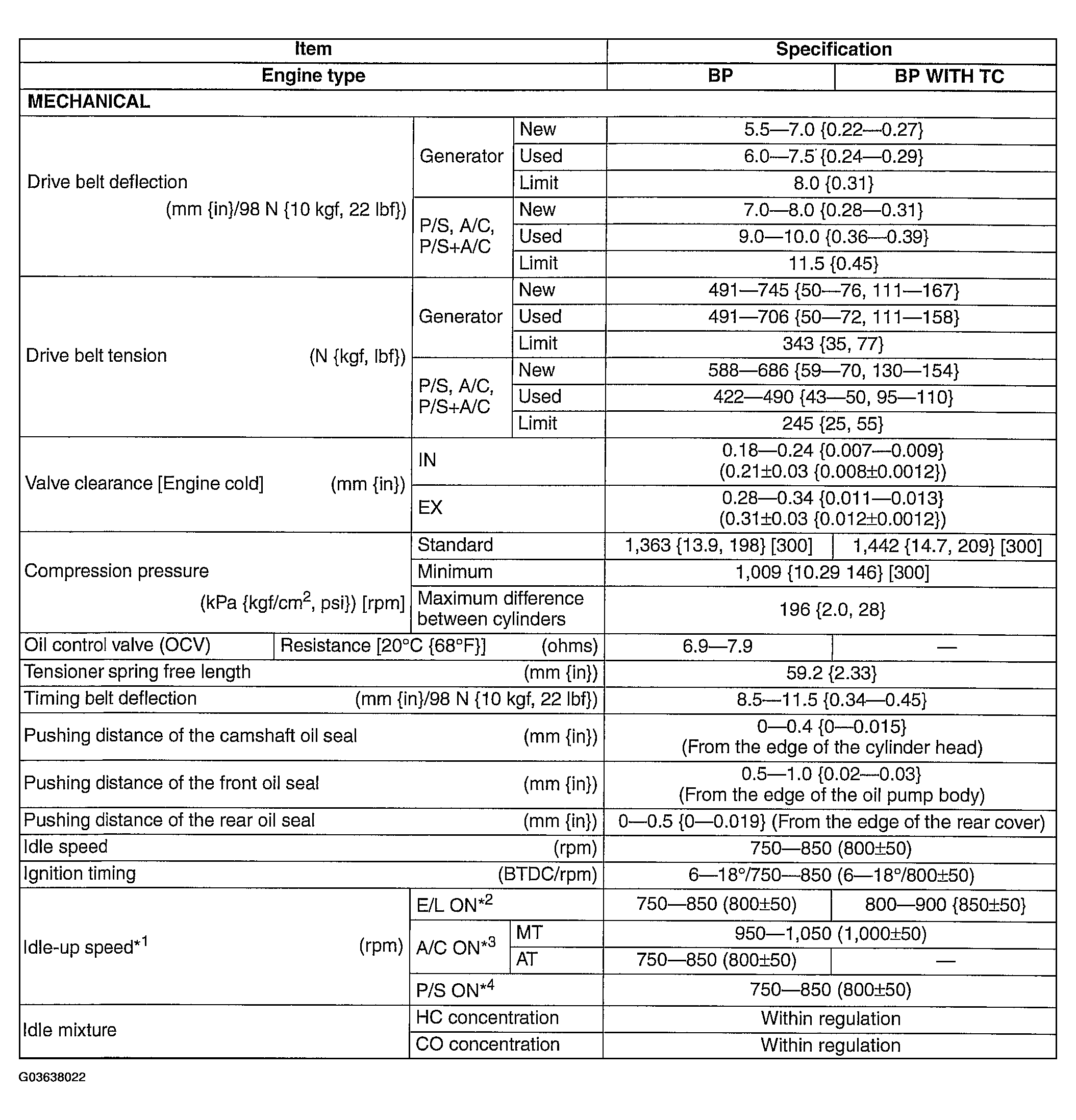

Fig 2: Engine Technical Data Chart (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

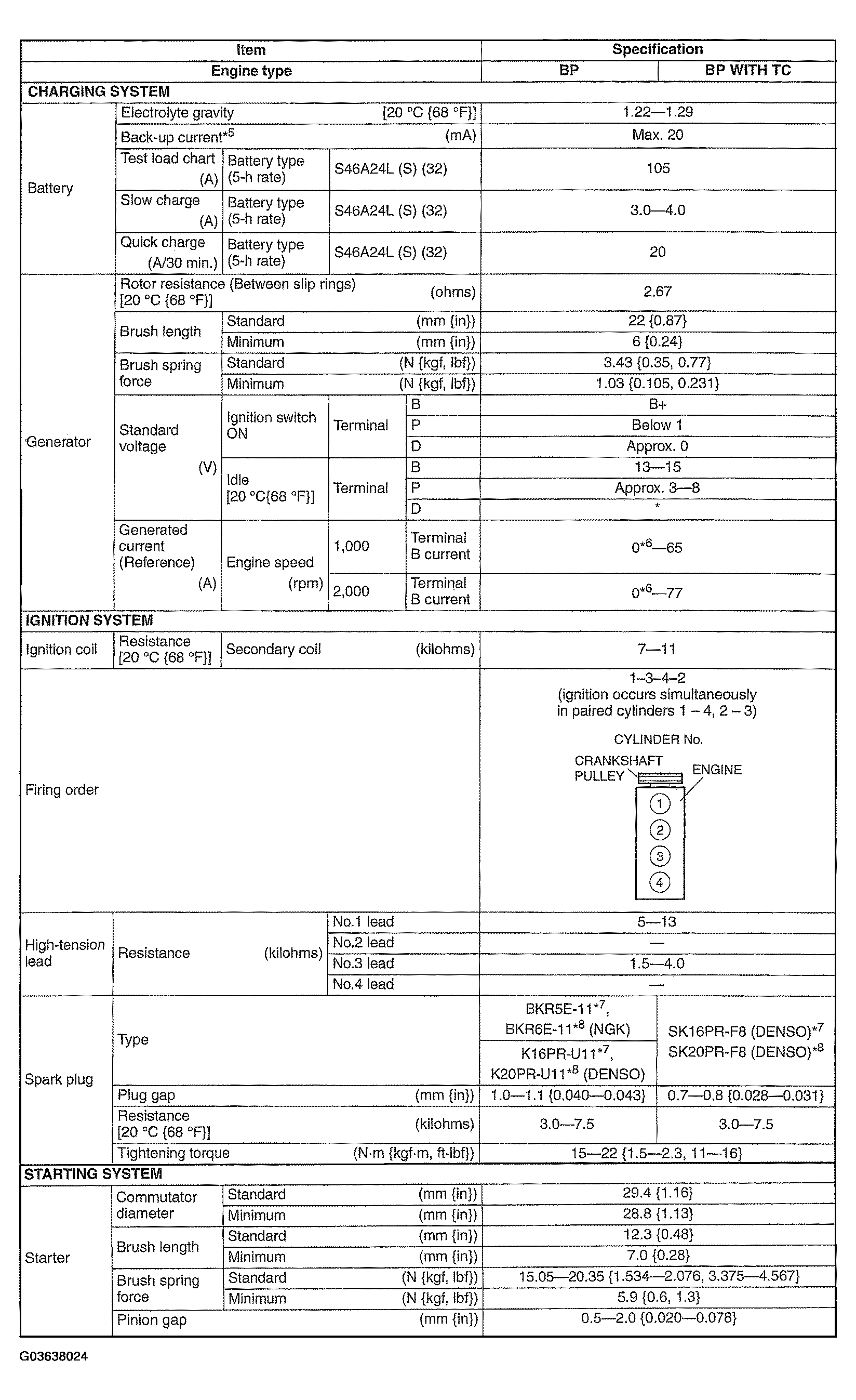

Fig 3: Engine Technical Data Chart (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
