Selector Lever Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

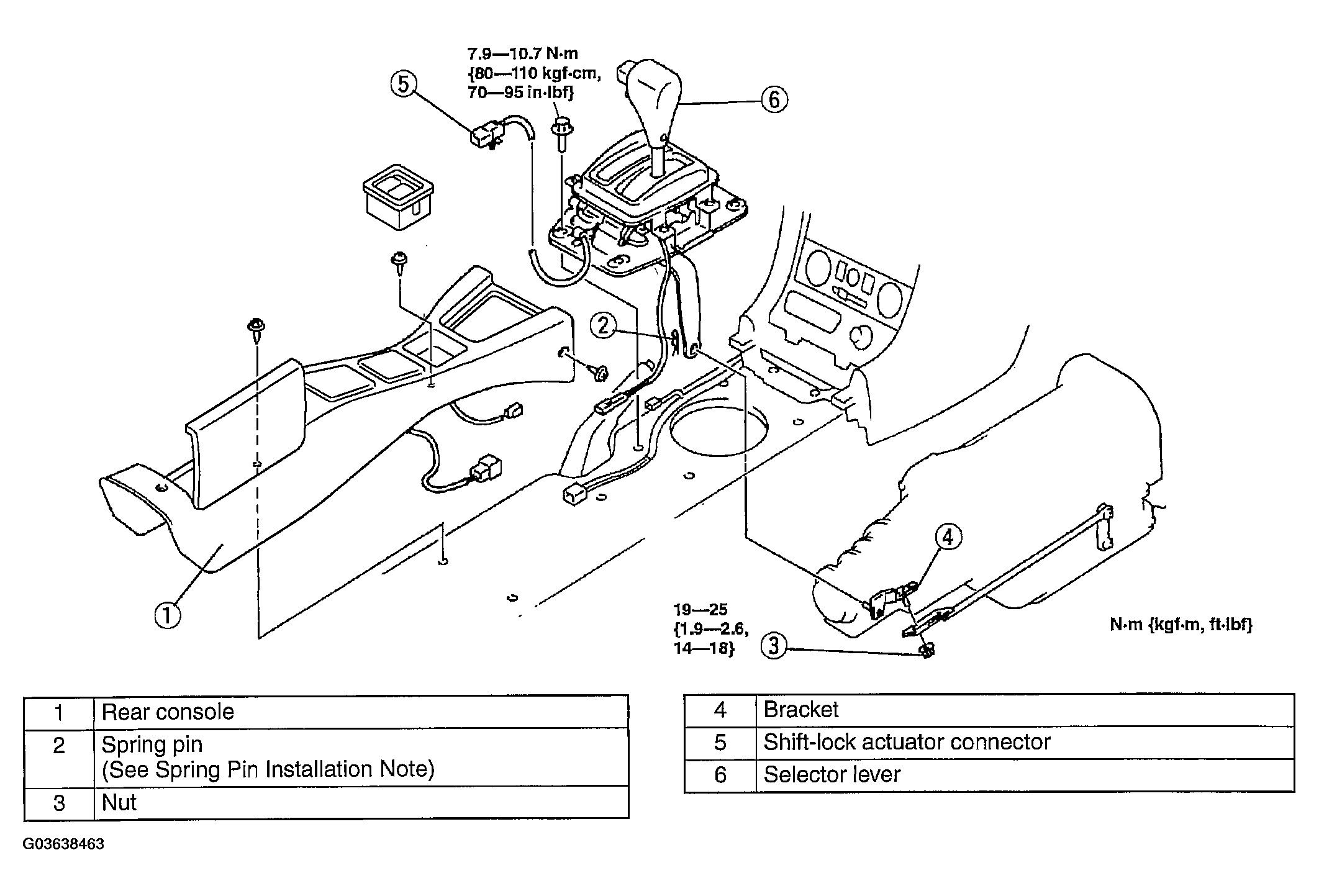

    Fig 1: Removing Selector Lever - With Torque Specifications
    G03638463Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
