Cruise Control Unit Connector End View
Cruise Control Unit Connector End View

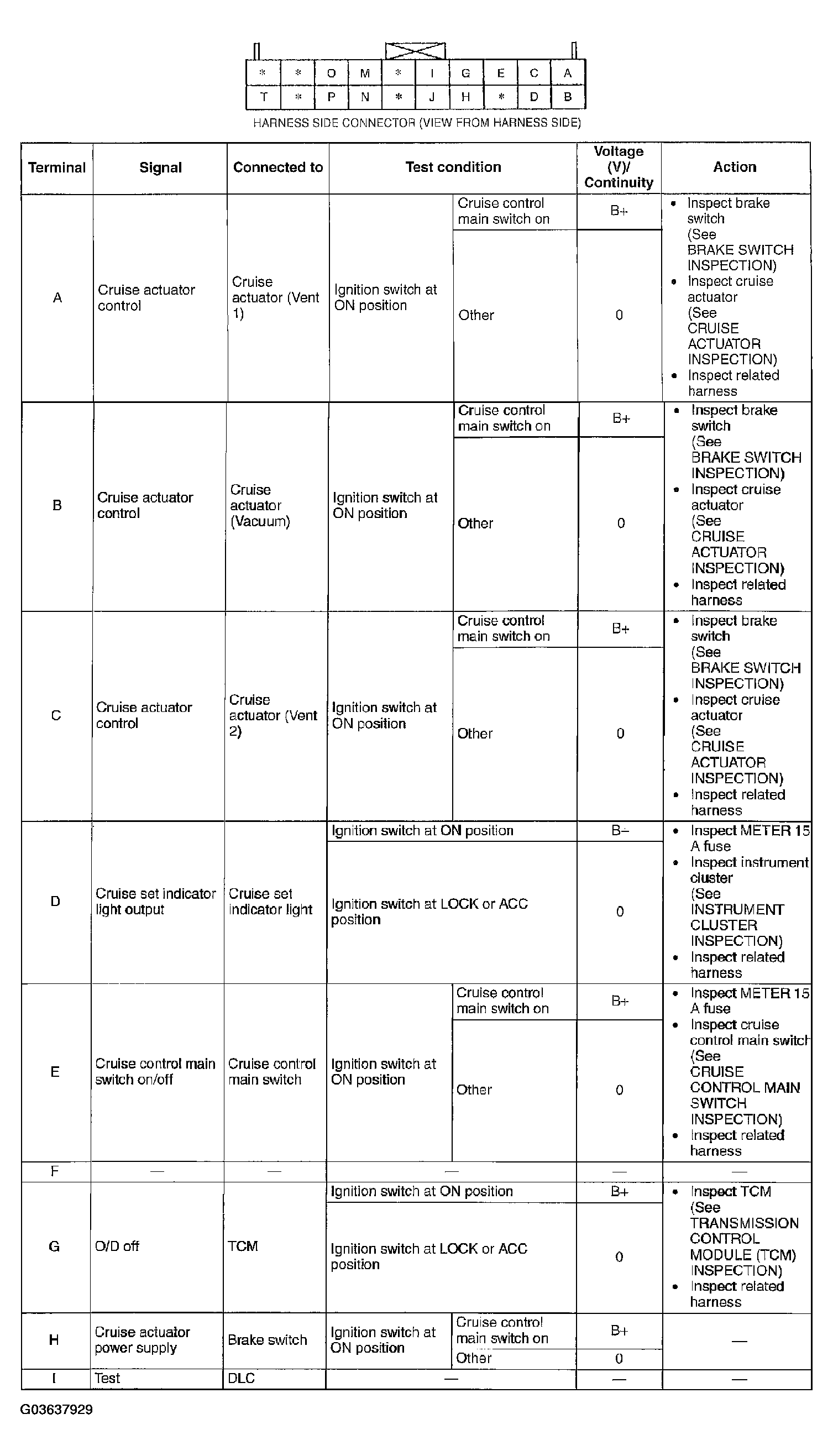

Fig 1: Cruise Control Unit Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
