Exhaust System Removal/Installation [BP]: Notes

WARNING:
  • Hot engines and the exhaust system can cause severe burns. Turn off the engine and wait until it and the exhaust system are cool before removing or installing the exhaust system.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

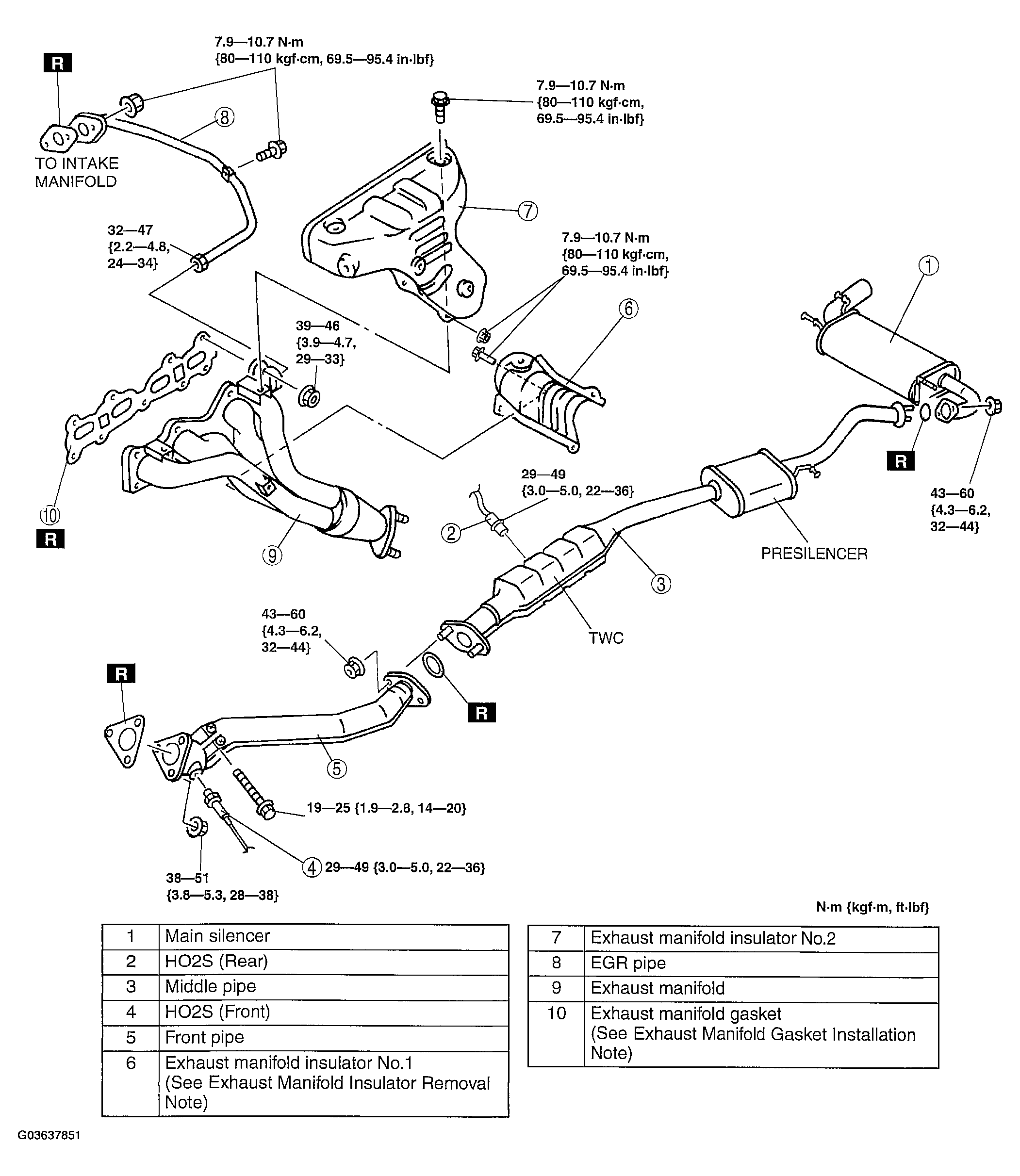

    Fig 1: Replacement Components Of Exhaust System With Torque Specifications
    G03637851Courtesy of MAZDA MOTORS CORP.
