Home › Mazda › 2005 › MX-5 Miata Base, Standard › Repair and Diagnosis › Engine Performance › Ignition System › Ignition System › Ignition System Location Index

Ignition System Location Index

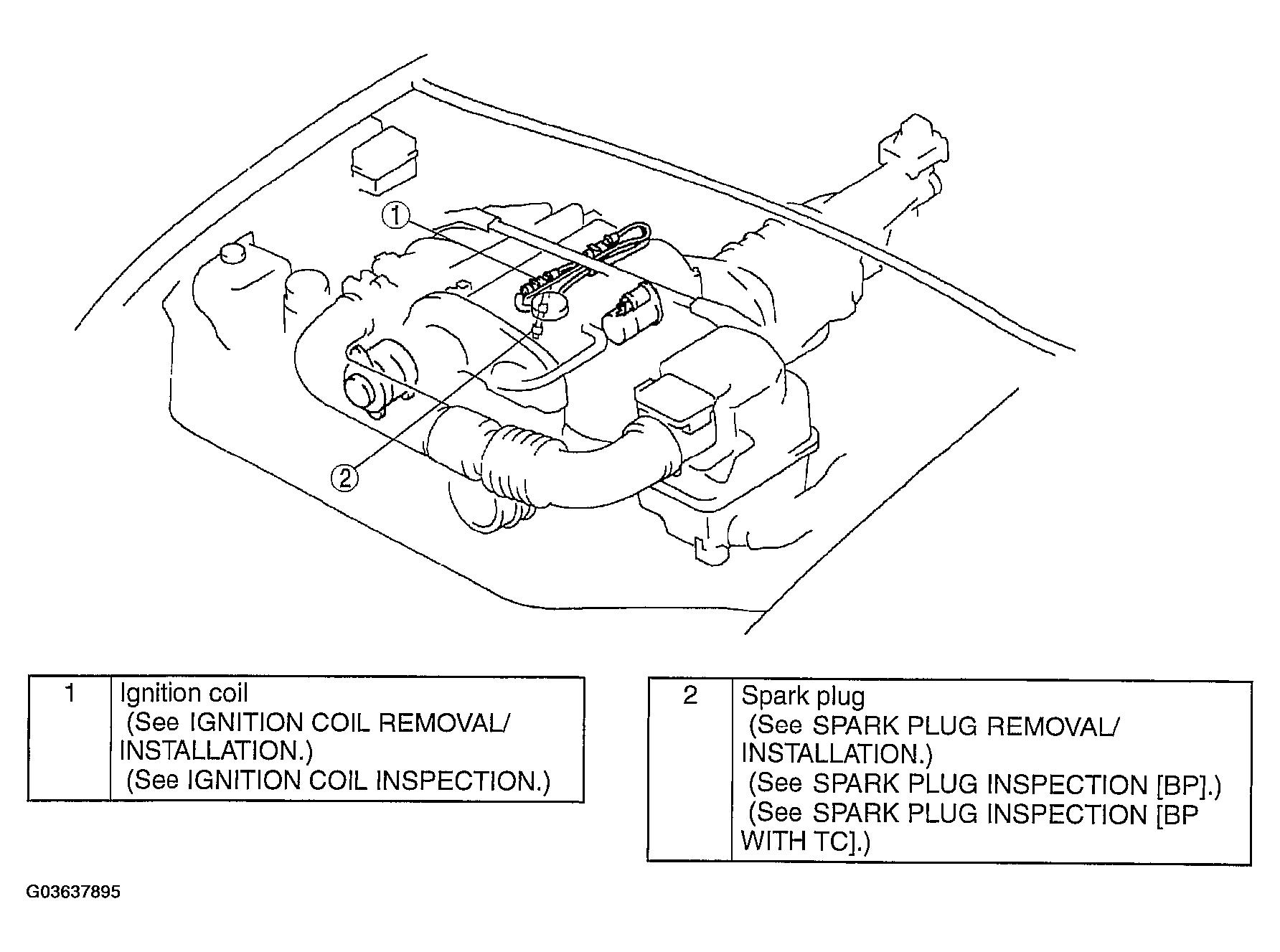

Fig 1: Locating Components Of Ignition System
G03637895Courtesy of MAZDA MOTORS CORP.
