Control System Device And Control Relationship Chart [BP]
›
Engine Control System
Engine Control System

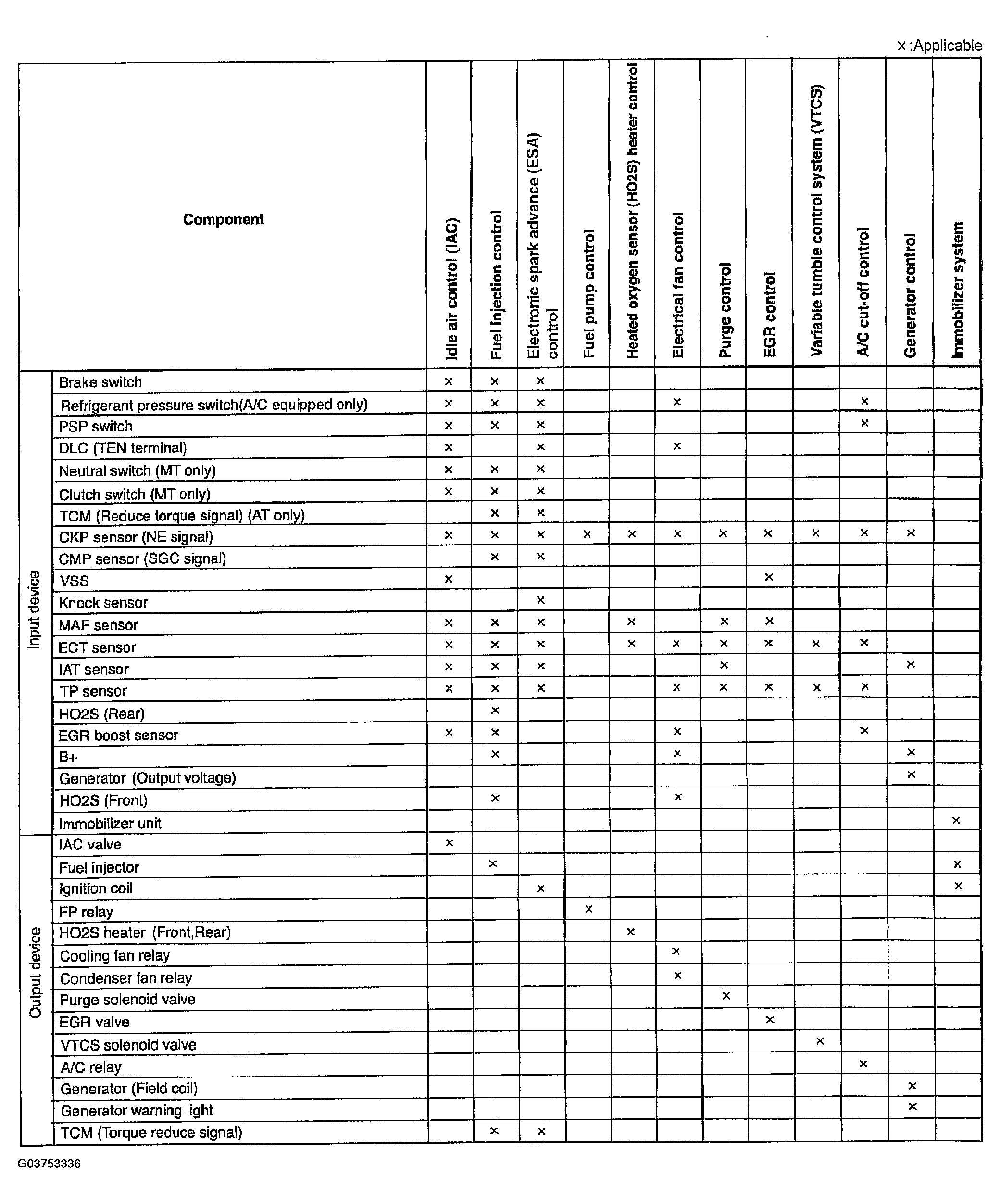

Fig 1: Identifying Control System Device And Control Relationship Chart - Engine Control System [BP]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
