Control System Device And Control Relationship Chart [BP]
›
Monitoring System
Monitoring System

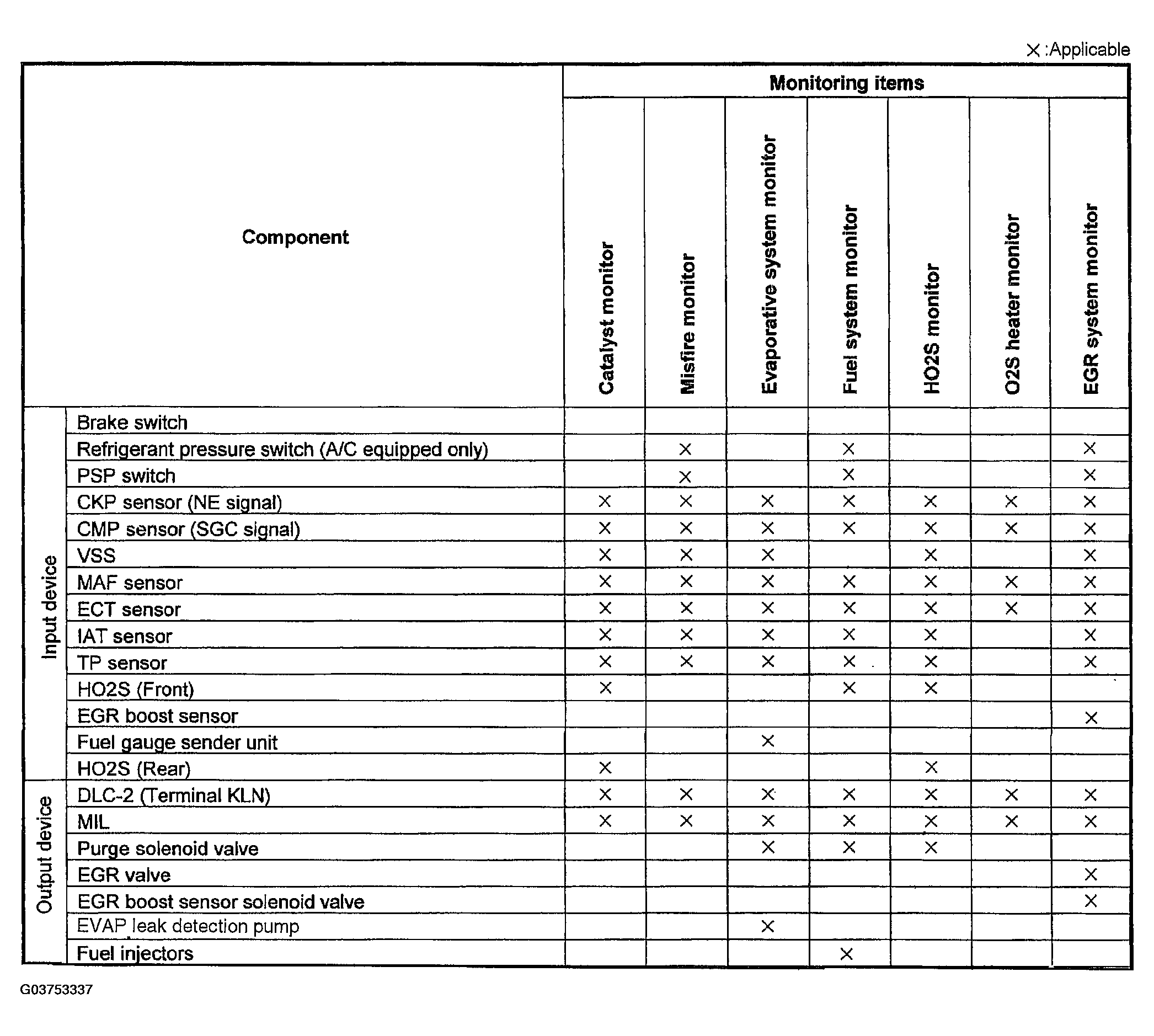

Fig 1: Identifying Control System Device And Control Relationship Chart - Monitoring System [BP]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
