Mazda
›
2005
›
MX-5 Miata Base, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
On-Board Diagnostic [Engine Control System BP, BP With TC]
›
DTC P2188
›
Notes
DTC P2188: Notes

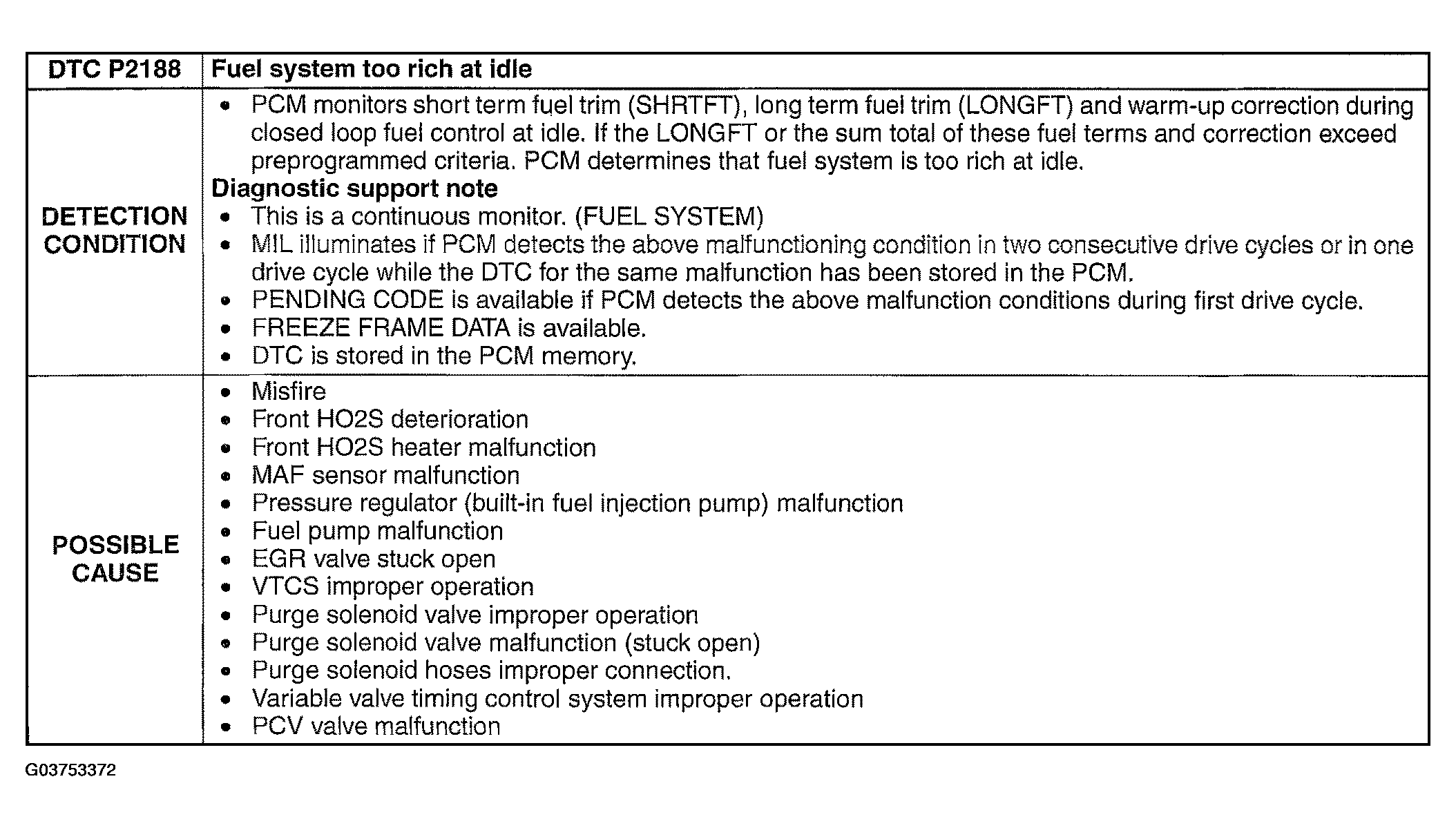

Fig 1: DTC P2188 [BP, BP With TC] Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
