On-Board Diagnostic [Engine Control System BP, BP With TC]
›
DTC P2503
›
Notes
DTC P2503: Notes

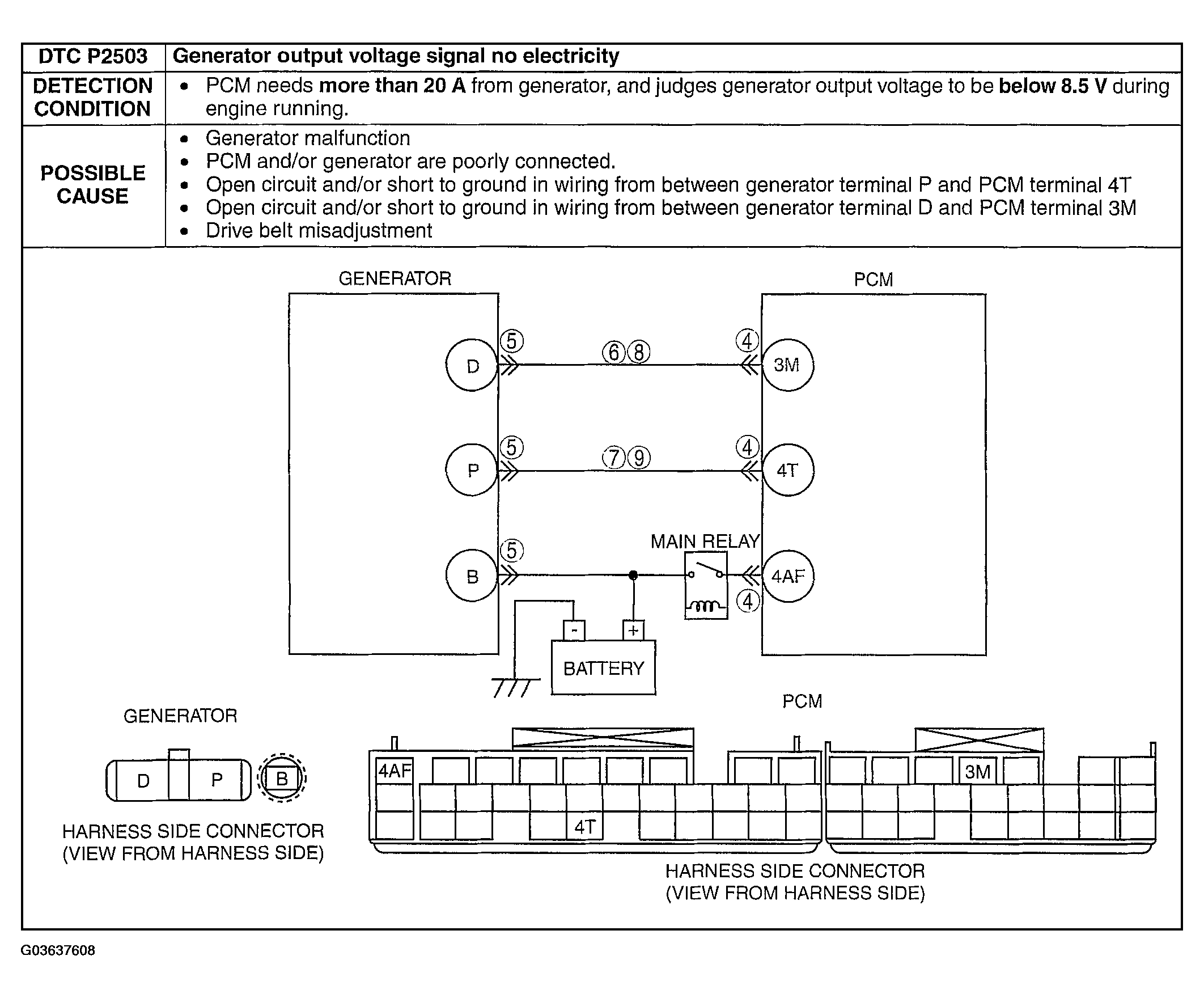

Fig 1: DTC P2503 [BP, BP With TC] Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
