Ignition Coil Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

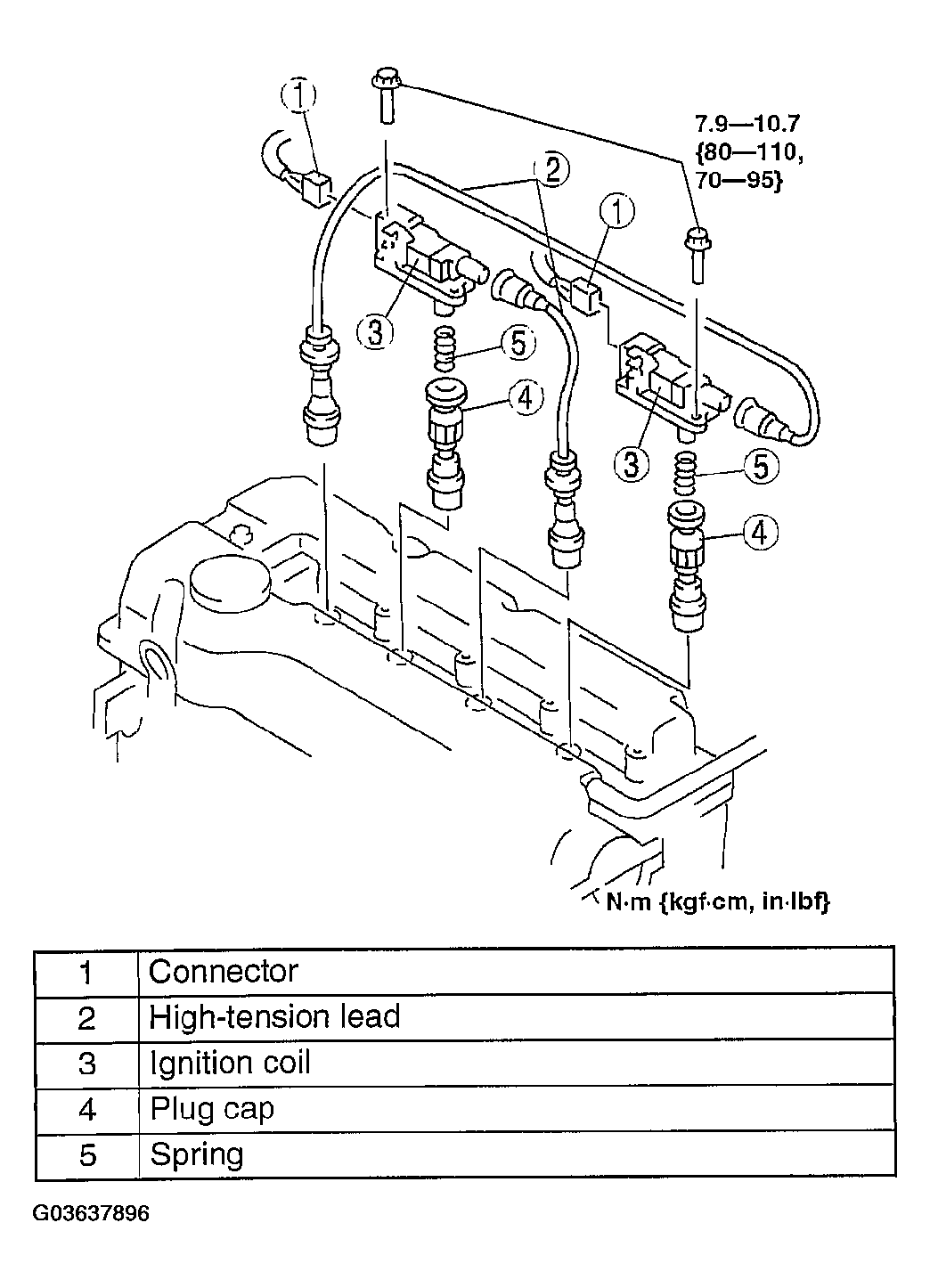

    Fig 1: Ignition Coil With Torque Specifications
    G03637896Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
