Short circuit

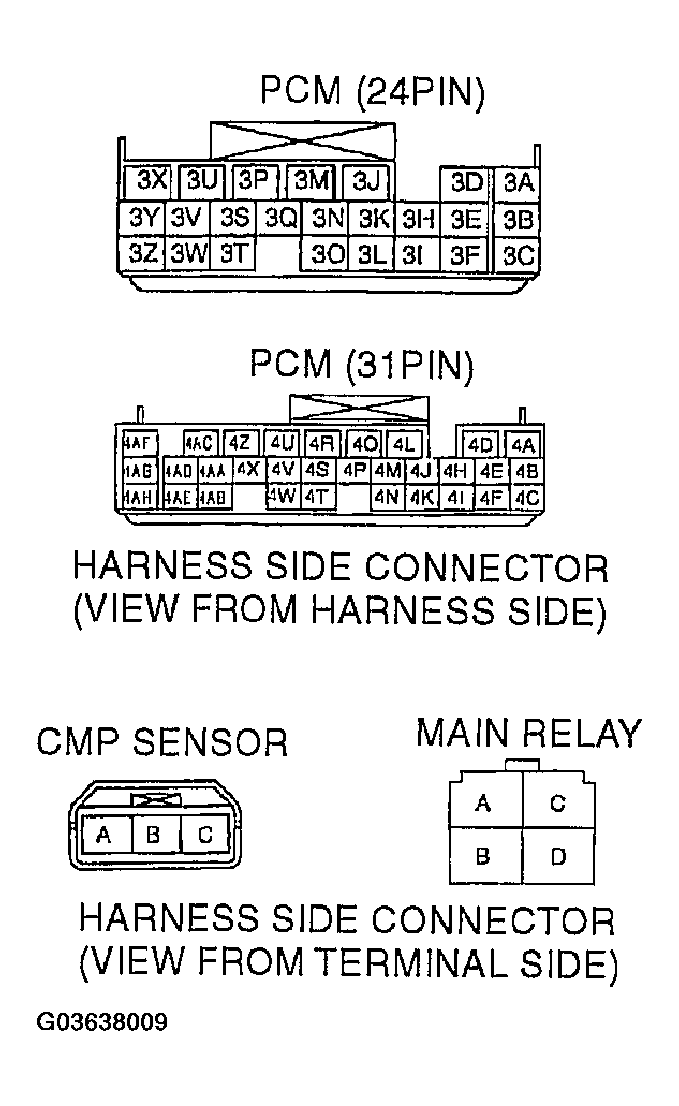

- CMP signal circuit (CMP sensor connector terminal B and PCM connector terminal 3V to GND)
- Power circuit (CMP sensor connector terminal A and main relay terminal D through common connector to GND)
- 3. Reconnect the CMP sensor connector.
- 4. Inspect the protrusion of camshaft (intake side) for damage and cracks.
