Symptom Quick Diagnostic Chart

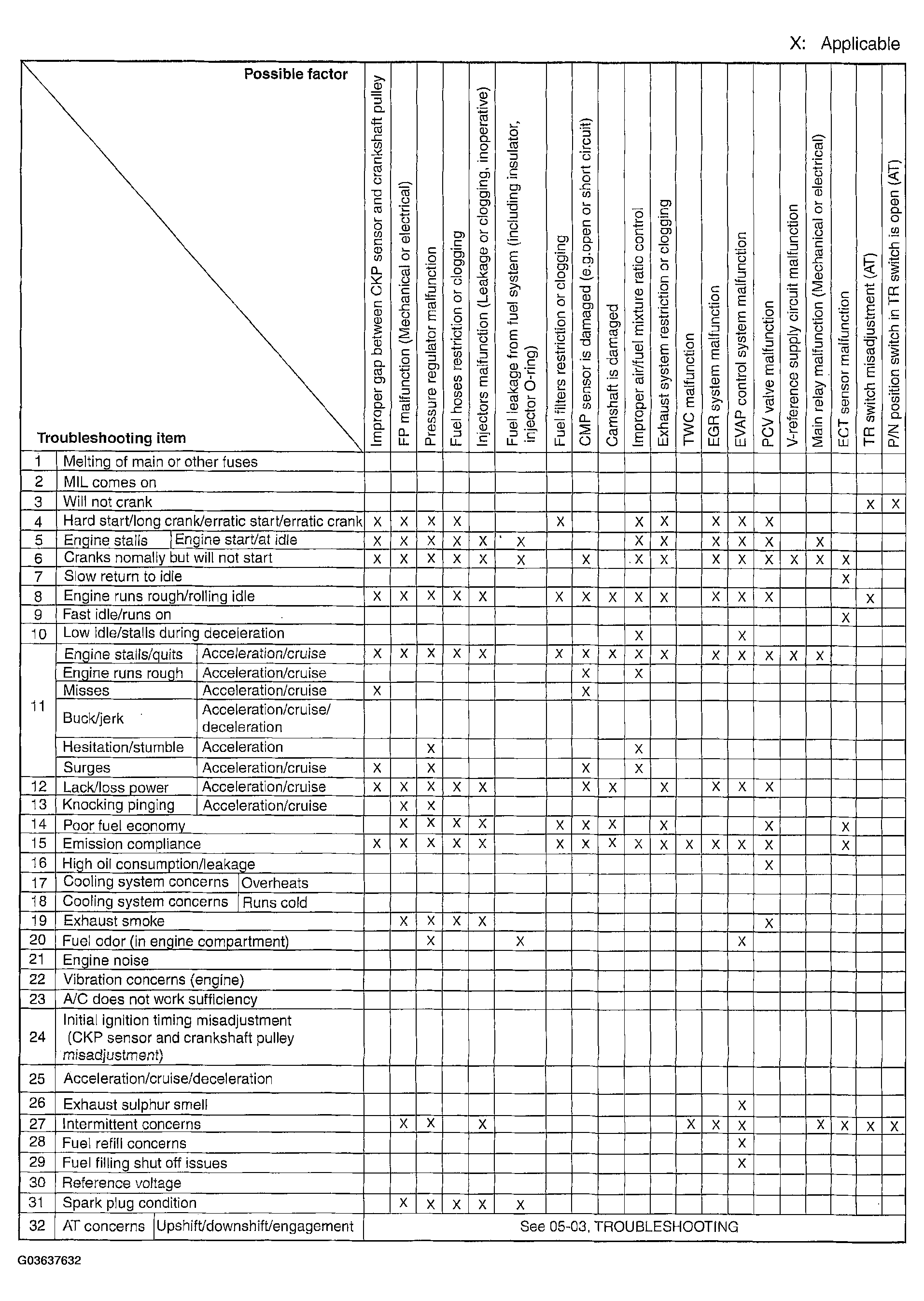

Fig 1: Quick Diagnostic Symptom Chart [BP, BP With TC] (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Quick Diagnostic Symptom Chart [BP, BP With TC] (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Quick Diagnostic Symptom Chart [BP, BP With TC] (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

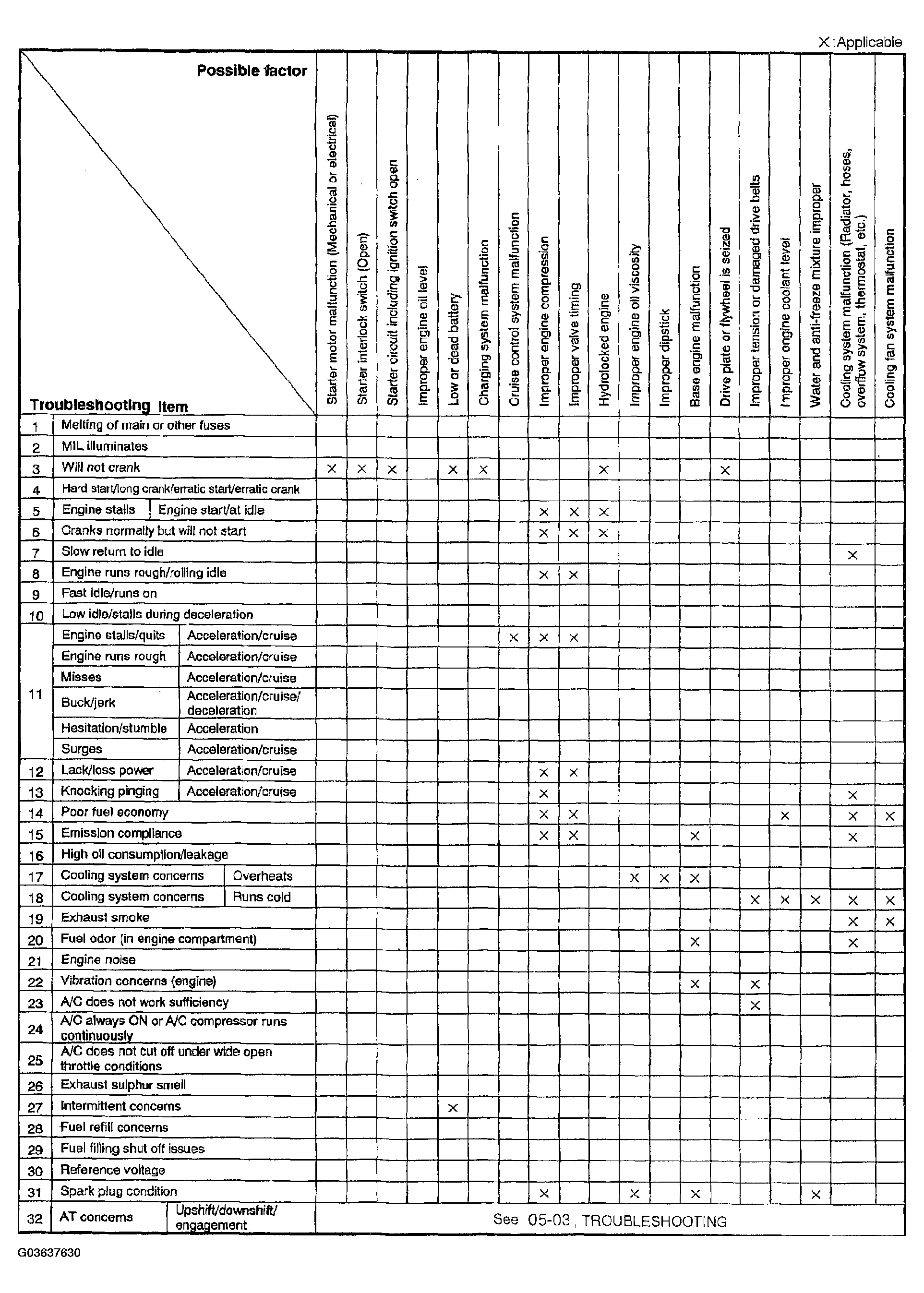

Fig 4: Quick Diagnostic Symptom Chart [BP, BP With TC] (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
