Engine Compartment Fuse Block: Notes

Engine compartment fuse block (Power Distribution Box) is located on driver's side of engine compartment, see illustrations below.

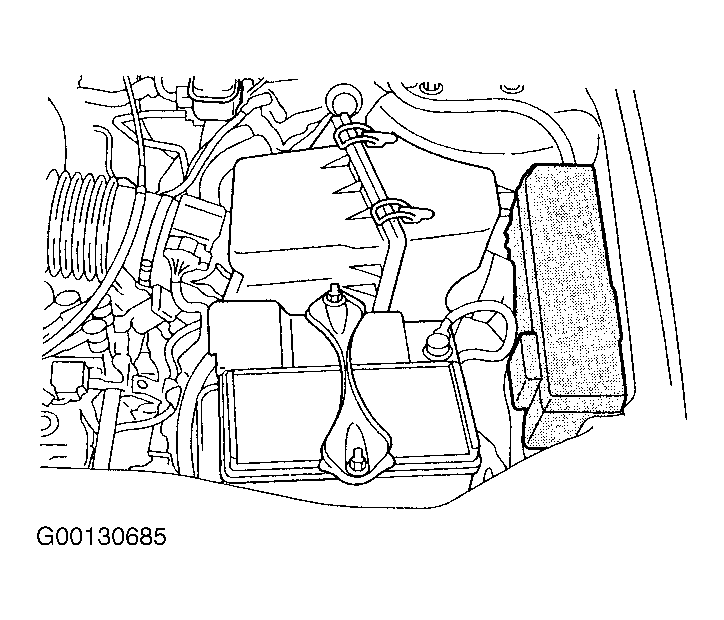

Fig 1: Locating Engine Compartment Fuse Box

Courtesy of MAZDA MOTORS CORP.

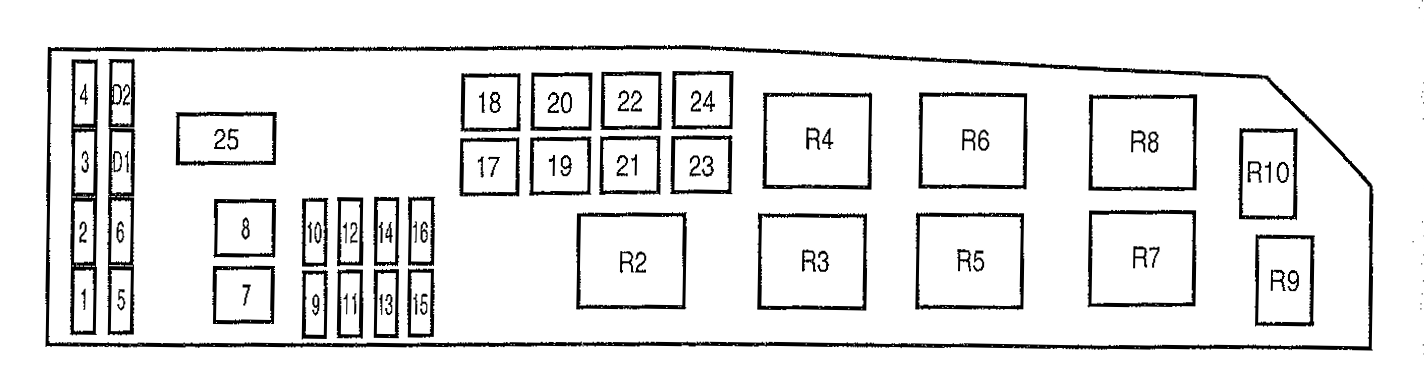

Fig 2: Identifying Engine Compartment Fuse Box Components

Courtesy of MAZDA MOTORS CORP.
