Removal and Installation

  1. Disconnect the negative battery cable. See BATTERY DISCONNECT .
  2. Disconnect the clutch pedal position (CPP) electrical connector.

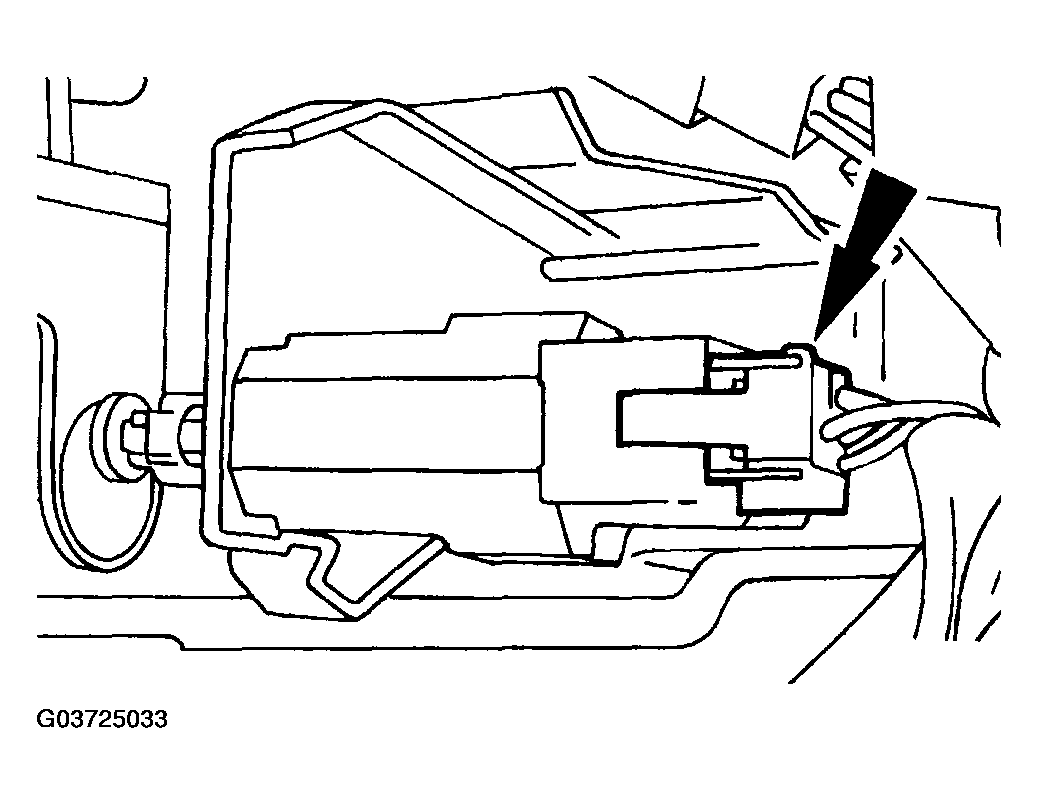

    Fig 1: Disconnecting Clutch Pedal Position (CPP) Electrical Connector
    G03725033Courtesy of MAZDA MOTORS CORP.
  3. Remove the CPP locknut and the switch.

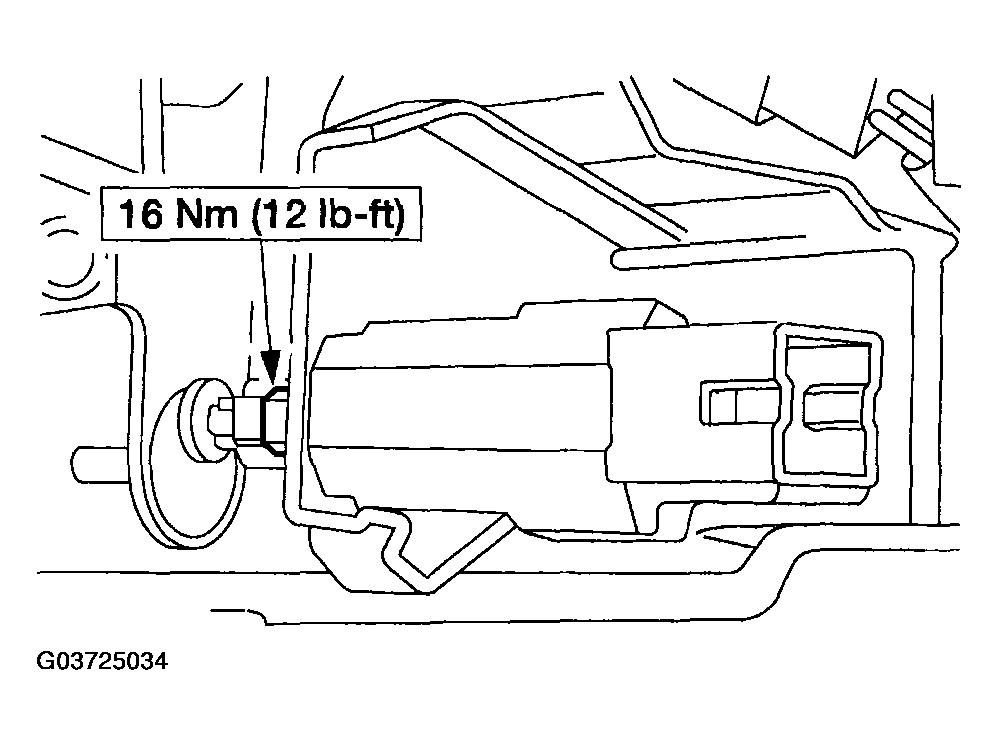

    Fig 2: Removing CPP Locknut And Switch & Torque Specifications
    G03725034Courtesy of MAZDA MOTORS CORP.
  4. To install, reverse the removal procedure.
