Fuel Injection Supply Manifold - 2.3L: Notes

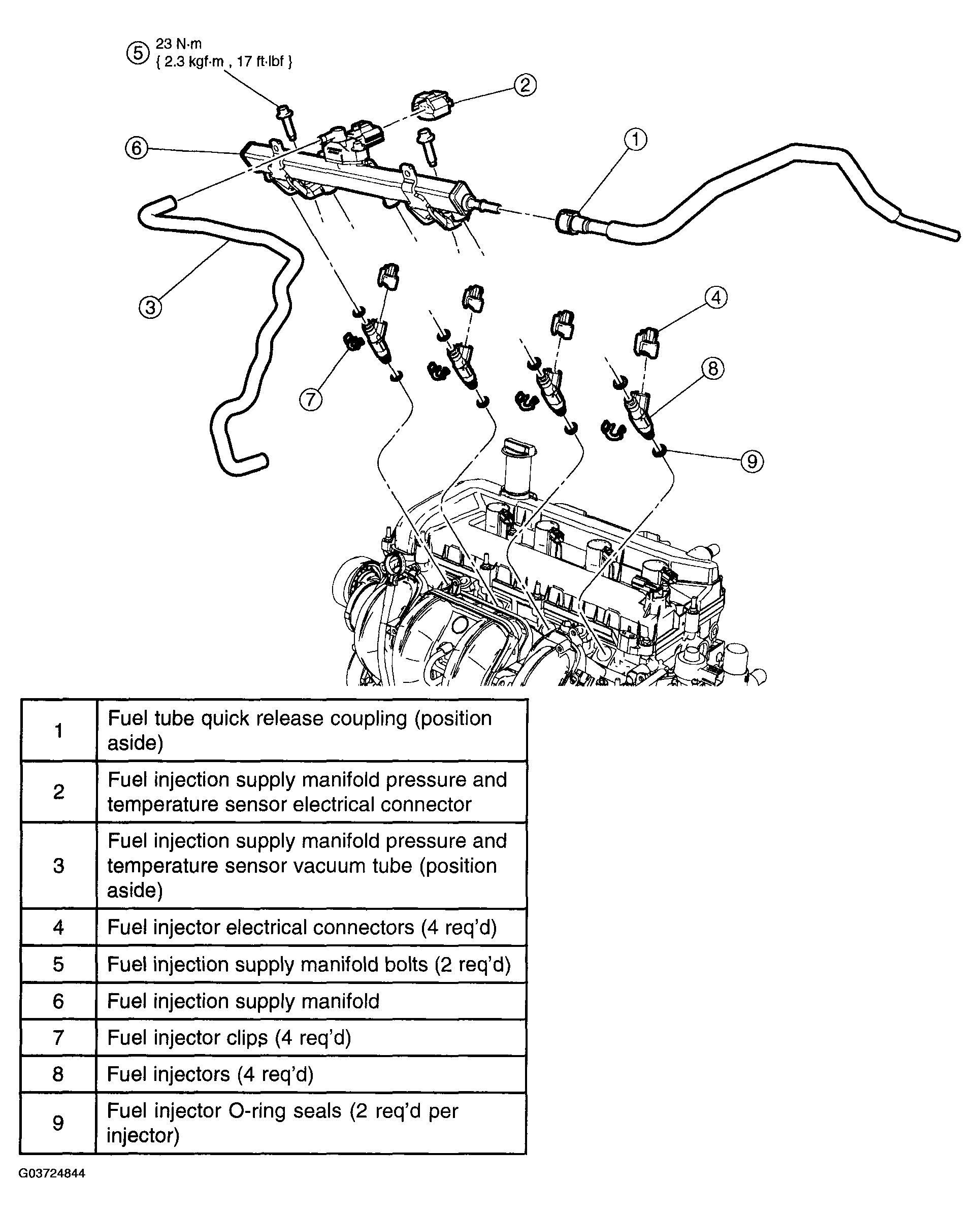

Fig 1: Removing/Installing Fuel Injection Supply Manifold - 2.3L
G03724844Courtesy of MAZDA MOTORS CORP.
