Upper Module Removal Note

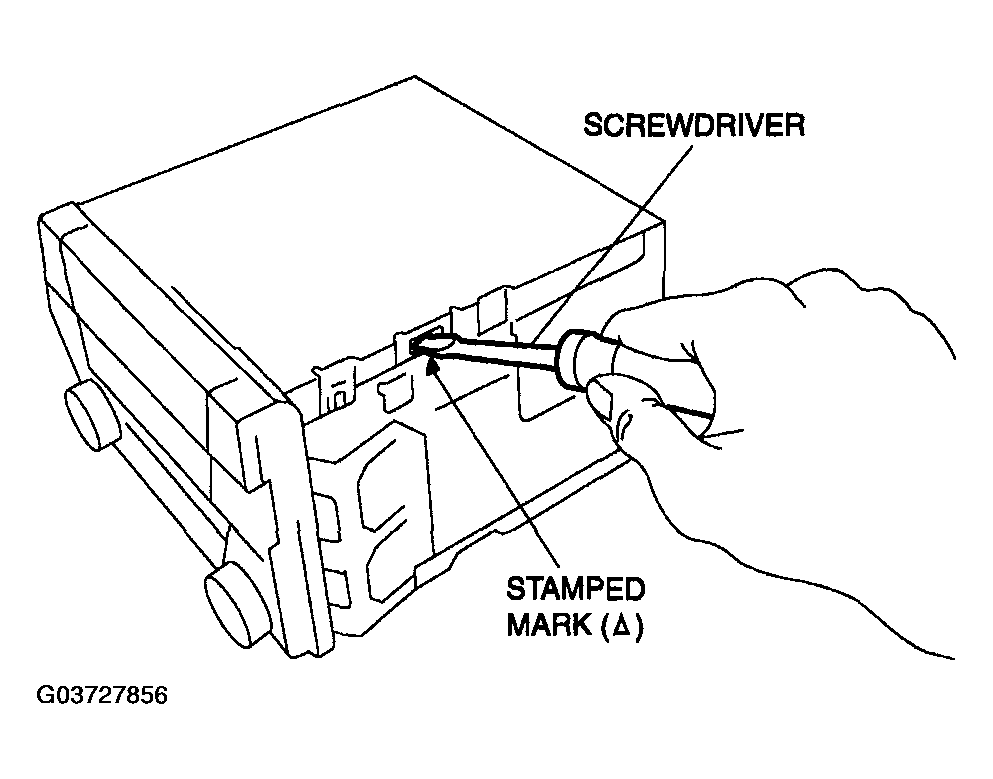

Fig 1: Inserting Screwdriver Into Hole Stamped Mark (Upper Module)
G03727856Courtesy of MAZDA MOTORS CORP.
  1. Insert a screwdriver into the hole stamped mark.
  2. To remove, lift the upper module by pushing down the screwdriver's handle
