Remote Transmitter

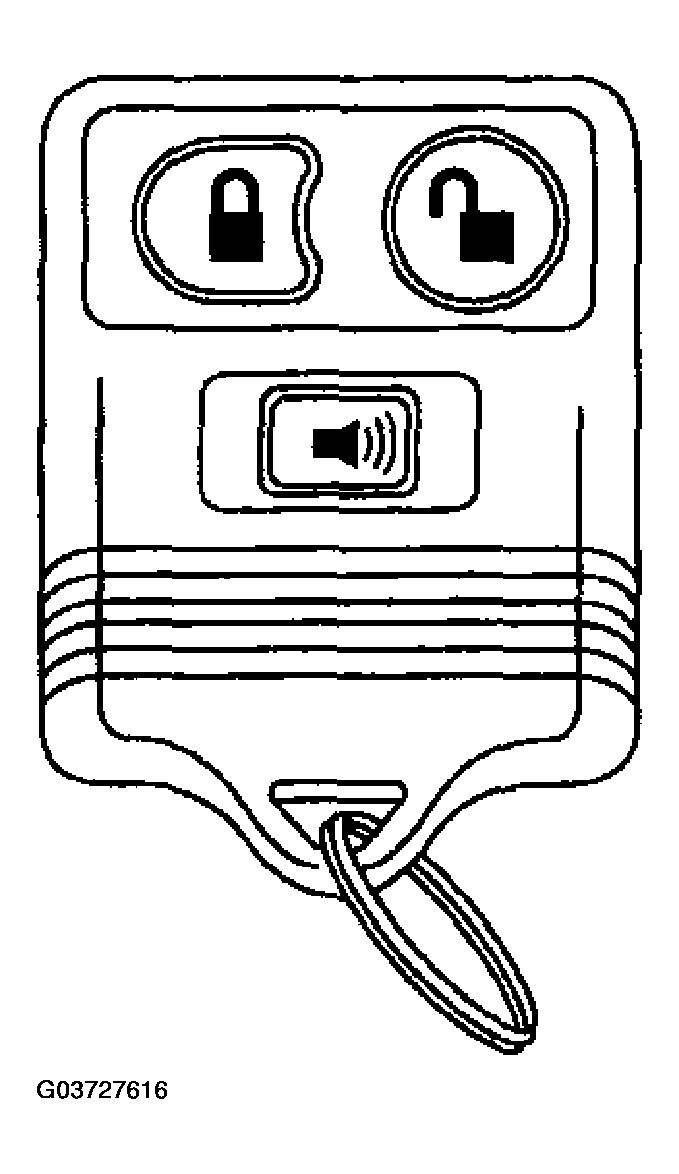

Fig 1: Identifying Remote Transmitter

Courtesy of MAZDA MOTORS CORP.

The remote transmitter can be programmed using the ignition lock cylinder method.

The remote transmitter initiates the following electronic system functions:

• unlocks the driver door
• unlocks all doors
• locks all doors
• activate/deactivate the panic alarm
• commands the interior lamps on (when unlocking) and off (when locking)
• sounds the horn once when LOCK is pressed twice within 3 seconds and the doors are closed

The remote transmitter has a minimum operating range of 10 m (33 feet).
