Removal and Installation

Remove the liftgate trim panel.
Disconnect the liftgate ajar switch electrical connector.

Fig 1: Disconnecting Liftgate Ajar Switch Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the liftgate latch actuating rod.
1. Open the clip.
2. Disconnect the actuating rod.

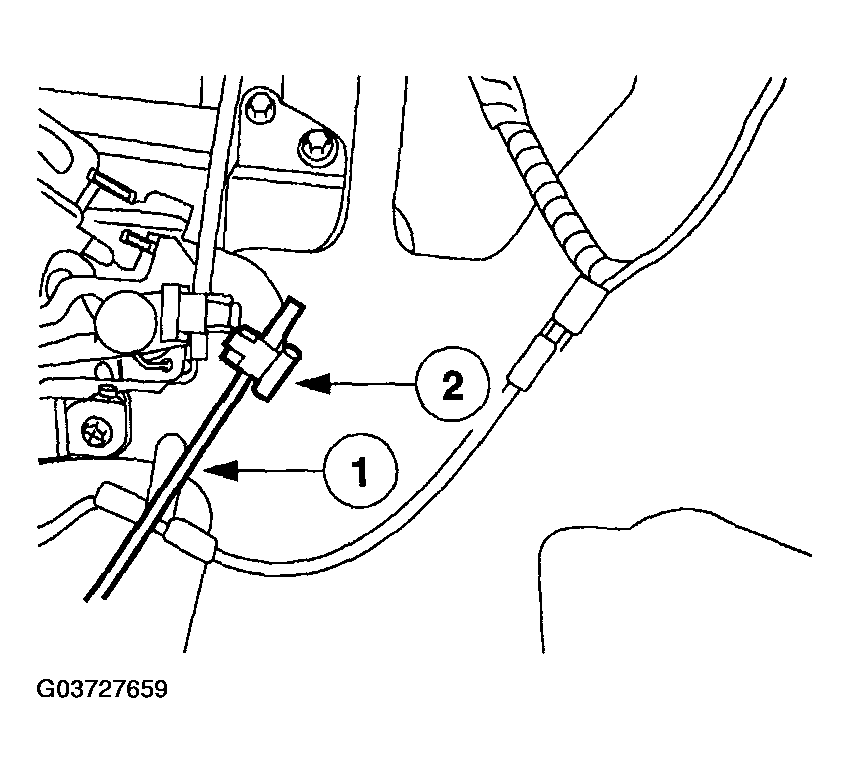

Fig 2: Disconnecting Liftgate Latch Actuating Rod
Courtesy of MAZDA MOTORS CORP.
Remove the liftgate latch bolts.
- Discard the bolts.

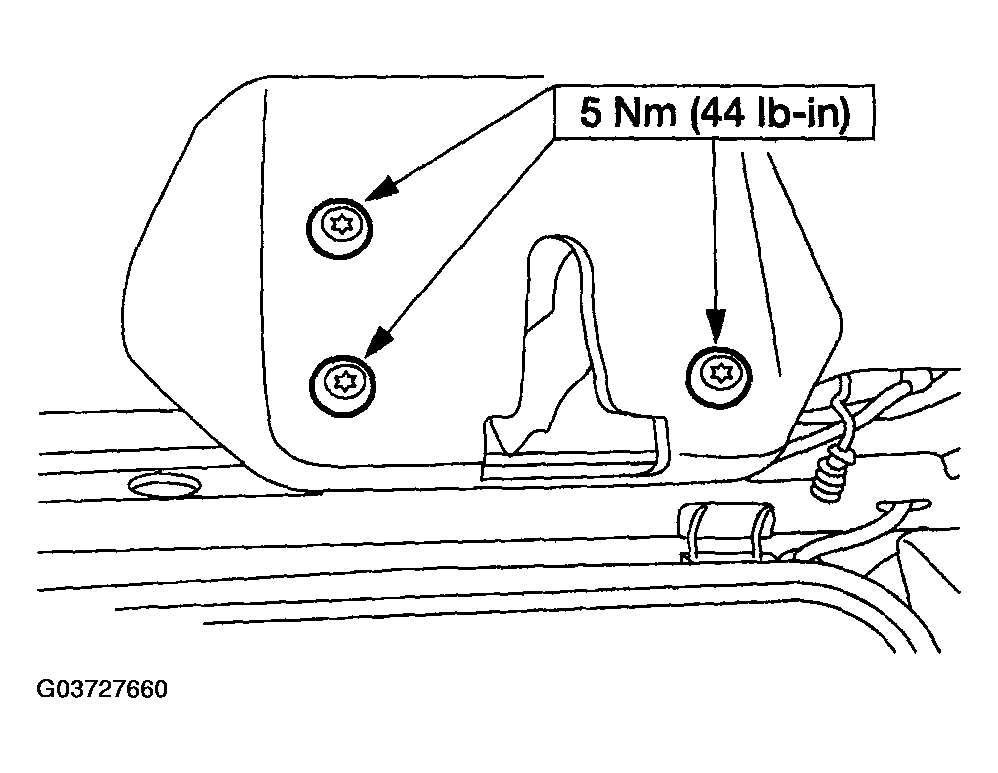

Fig 3: Removing Liftgate Latch Bolts - With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the liftgate latch.
NOTE:
- Make sure the liftgate latch release rod is not Preloading the latch. It should be clipped in a relaxed state with no slack.
NOTE:
- Position the liftgate latch release rod by pushing outboard to remove the slack.
To install, reverse the removal procedure.
