Removal and Installation: Installation

  1. Position the liftgate window latch and loosely install the bolts.
    Fig 1: Installing Liftgate Window Latch Bolts
    G03727663Courtesy of MAZDA MOTORS CORP.
  2. Adjust the liftgate window latch.
    • Set the liftgate window glass flushness to 1.5 mm (0.06 in) under flush.
  3. Tighten the liftgate window latch bolts.
    Fig 2: Tightening Liftgate Window Latch Bolts - With Torque Specification
    G03727664Courtesy of MAZDA MOTORS CORP.
  4. Connect the liftgate window latch.
    1. Connect the liftgate window latch ajar switch electrical connector.
    2. Connect the actuating rod and close the clip.

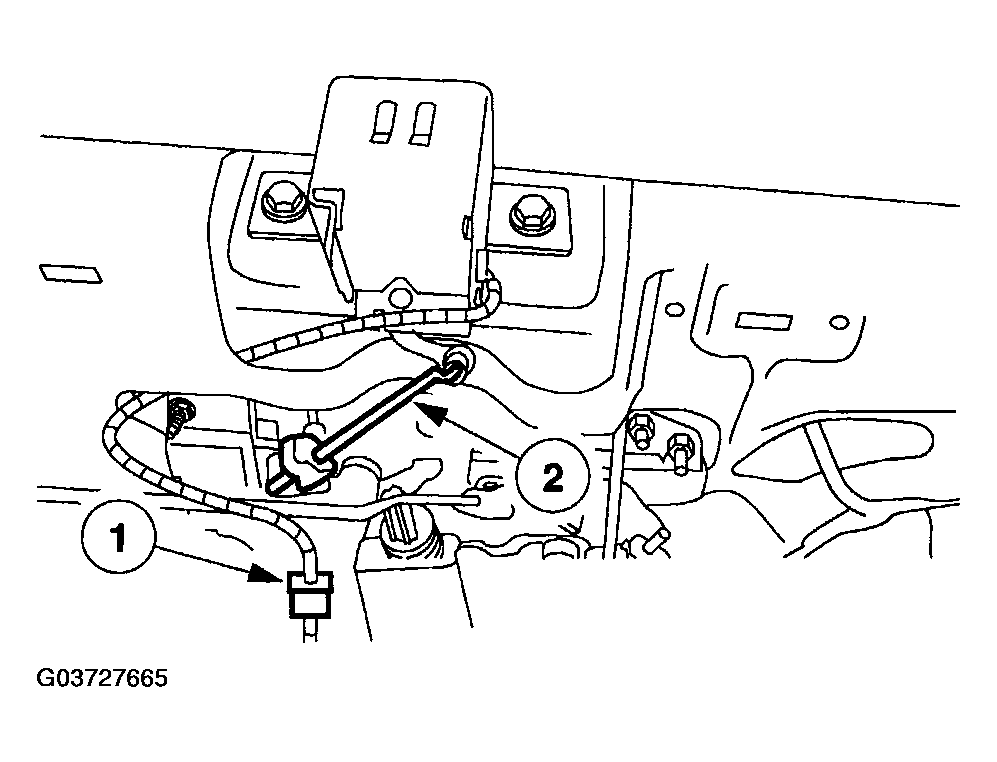

    Fig 3: Connecting Liftgate Window Latch
    G03727665Courtesy of MAZDA MOTORS CORP.
  5. Install the liftgate trim panel.
