Notes
Liftgate Window Glass: Notes

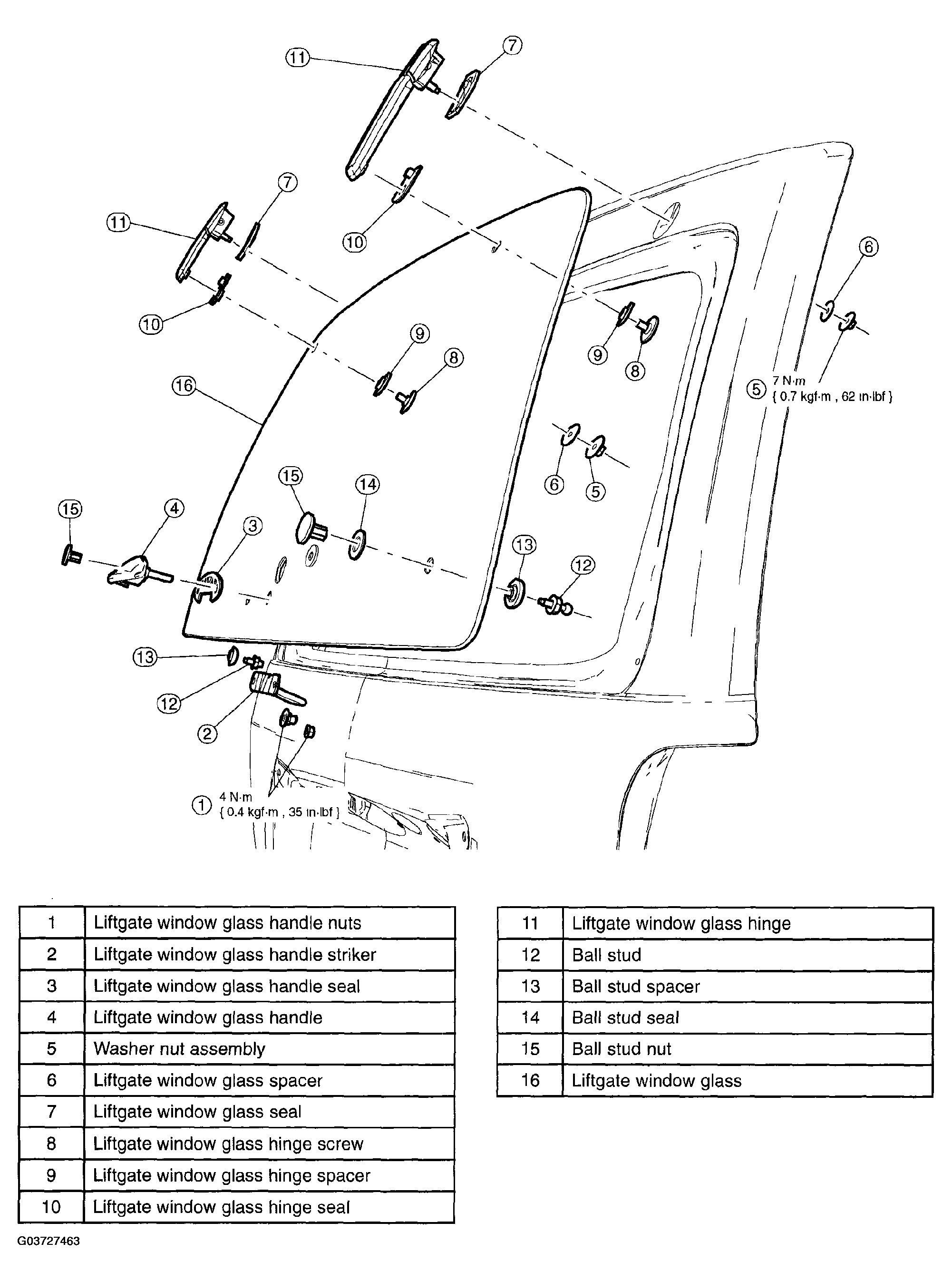

Fig 1: Liftgate Window Glass Replacement Components -- With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
