Removal and Installation

Remove the audio unit. See AUDIO UNIT .
Push outward on the rear window defrost switch to remove it from the instrument panel center finish panel.
- Disconnect the electrical connector.

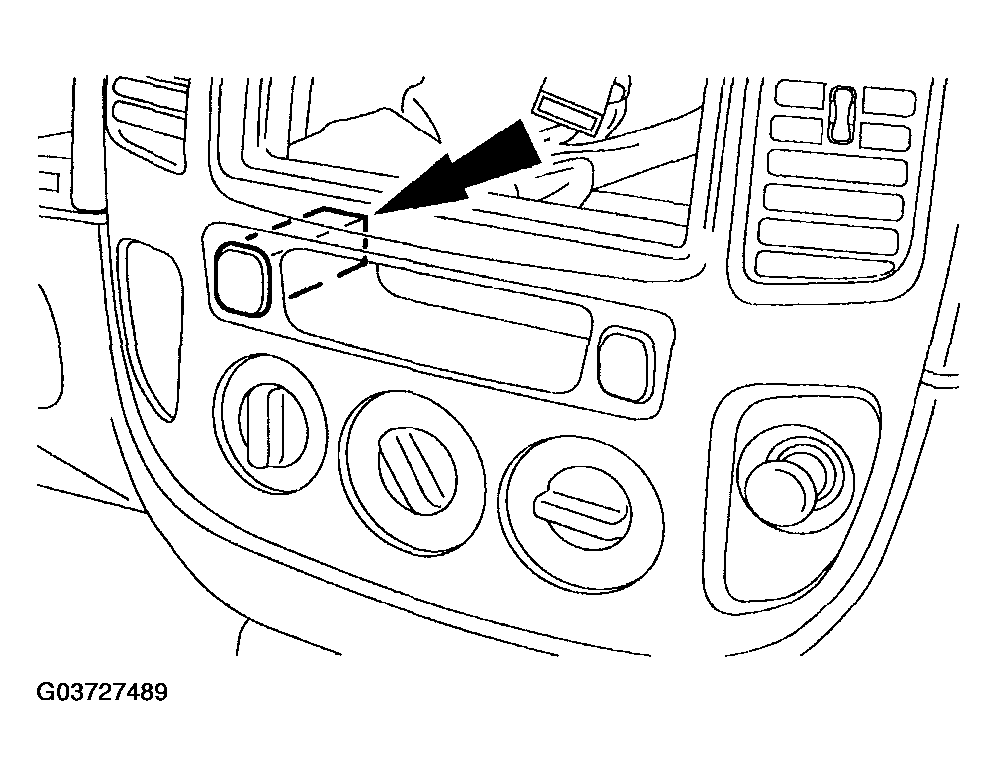

Fig 1: Removing Rear Window Defrost Switch From Instrument Panel Center Finish Panel
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
