Generator - 2.3L
›
Notes
Generator - 2.3L: Notes

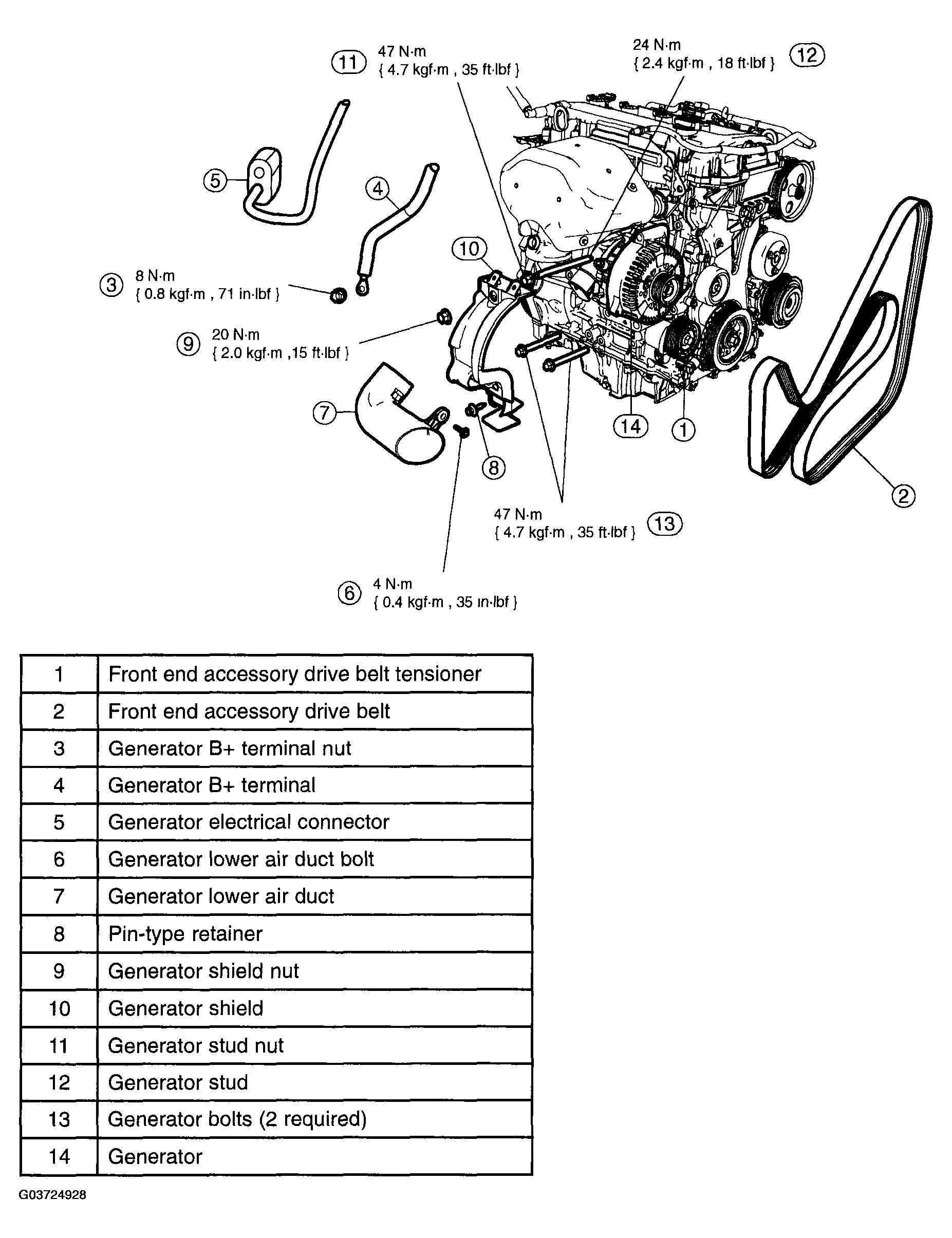

Fig 1: Generator With Torque Specifications -- 2.3L
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
