Generator - 3.0L (4V): Notes

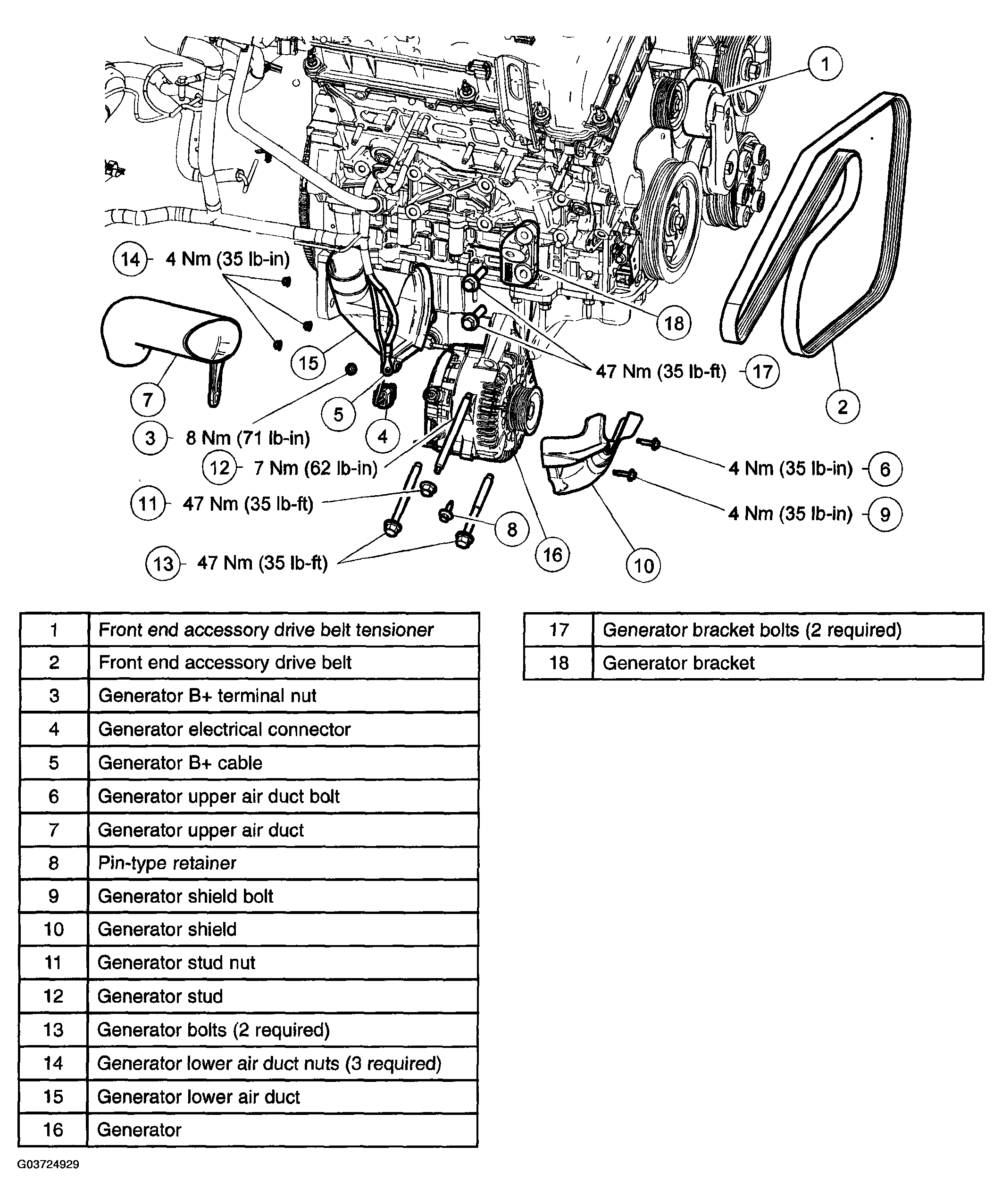

Fig 1: Generator With Torque Specifications -- 3.0L (4V)
G03724929Courtesy of MAZDA MOTORS CORP.
