Camshaft Position (CMP) Sensor - 2.3L: Notes

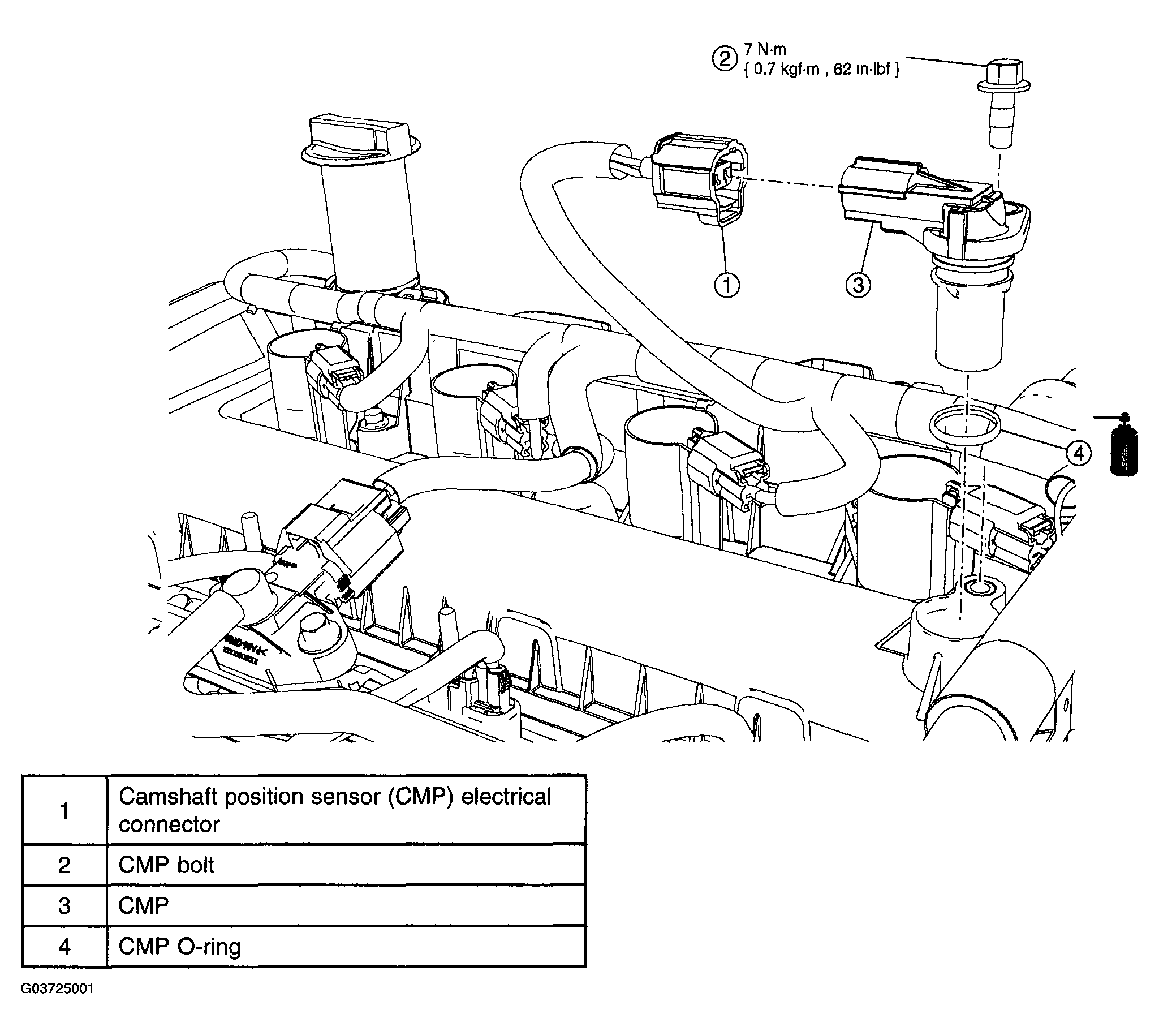

Fig 1: Removing/Installing Camshaft Position Sensor & Torque Specifications - 2.3L
G03725001Courtesy of MAZDA MOTORS CORP.
