Throttle Position (TP) Sensor - 3.0L (4V)
›
Notes
Throttle Position (TP) Sensor - 3.0L (4V): Notes

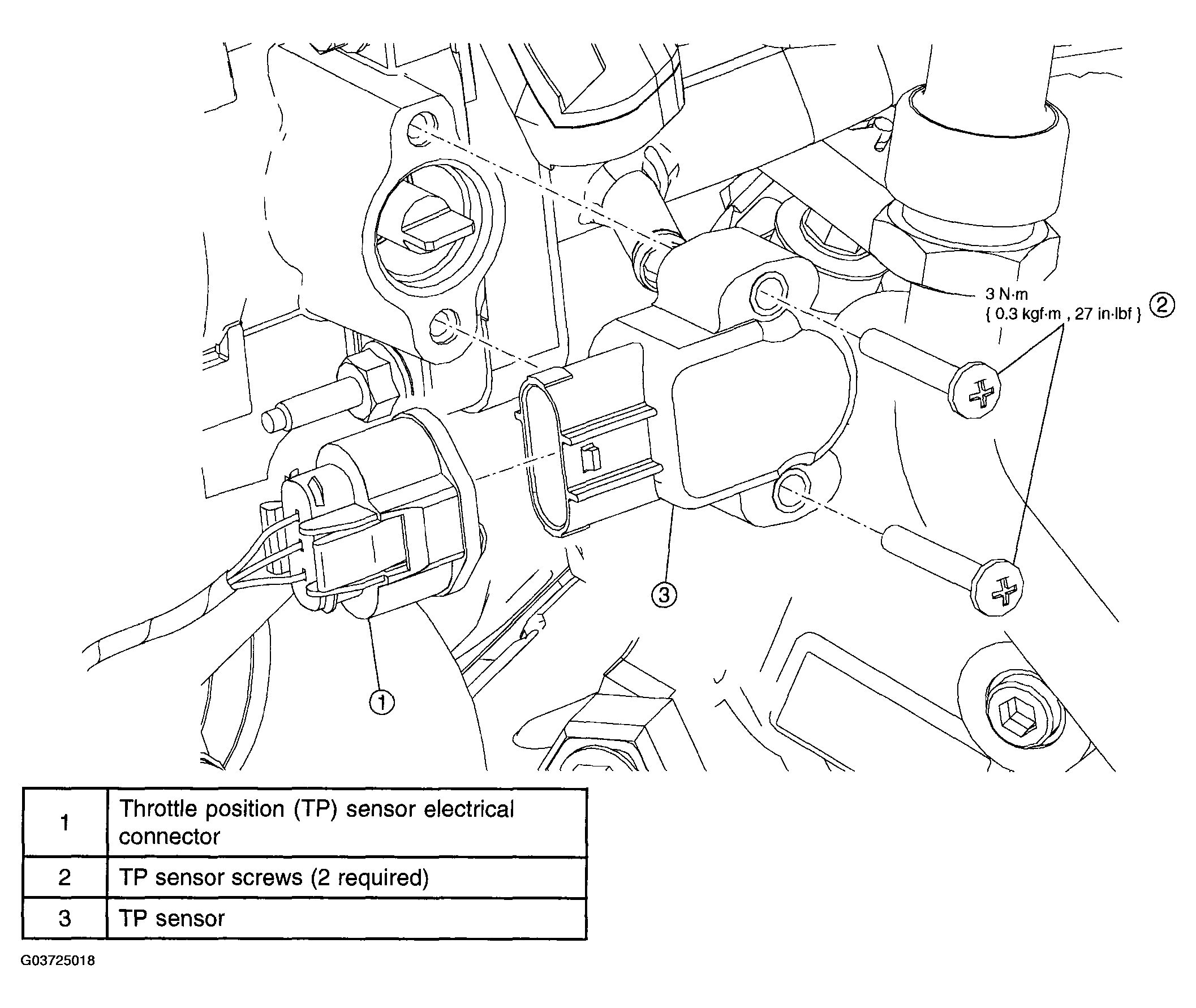

Fig 1: Removing/Installing Throttle Position (TP) Sensor & Torque Specifications - 3.0L (4V)
Courtesy of MAZDA MOTORS CORP.
