Removal and Installation

Raise and support the vehicle.
Use a suitable jack to support the fuel tank.
Disconnect the pin-type retainers from the fuel tank strap and position the parking brake cable aside.

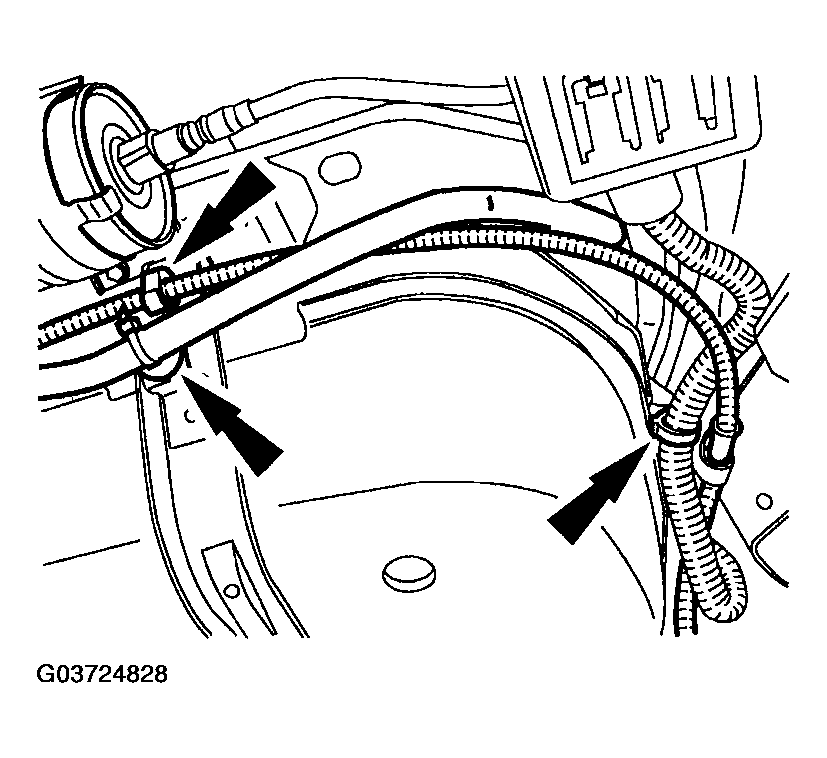

Fig 1: Disconnecting Pin-Type Retainers From Fuel Tank Strap
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the fuel tank straps.

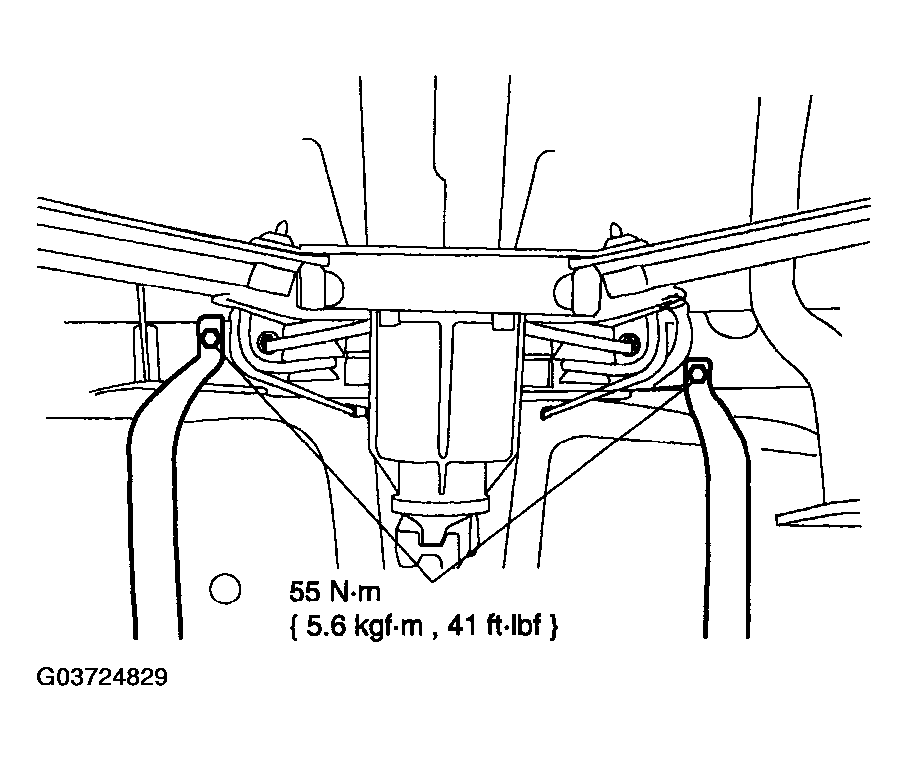

Fig 2: Removing Bolts And Fuel Tank Straps & Torque Specifications
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
