Ho2S Heater(S)
Ho2S Heater(S)
NOTE:
The following test procedures are for DTCs P1127.

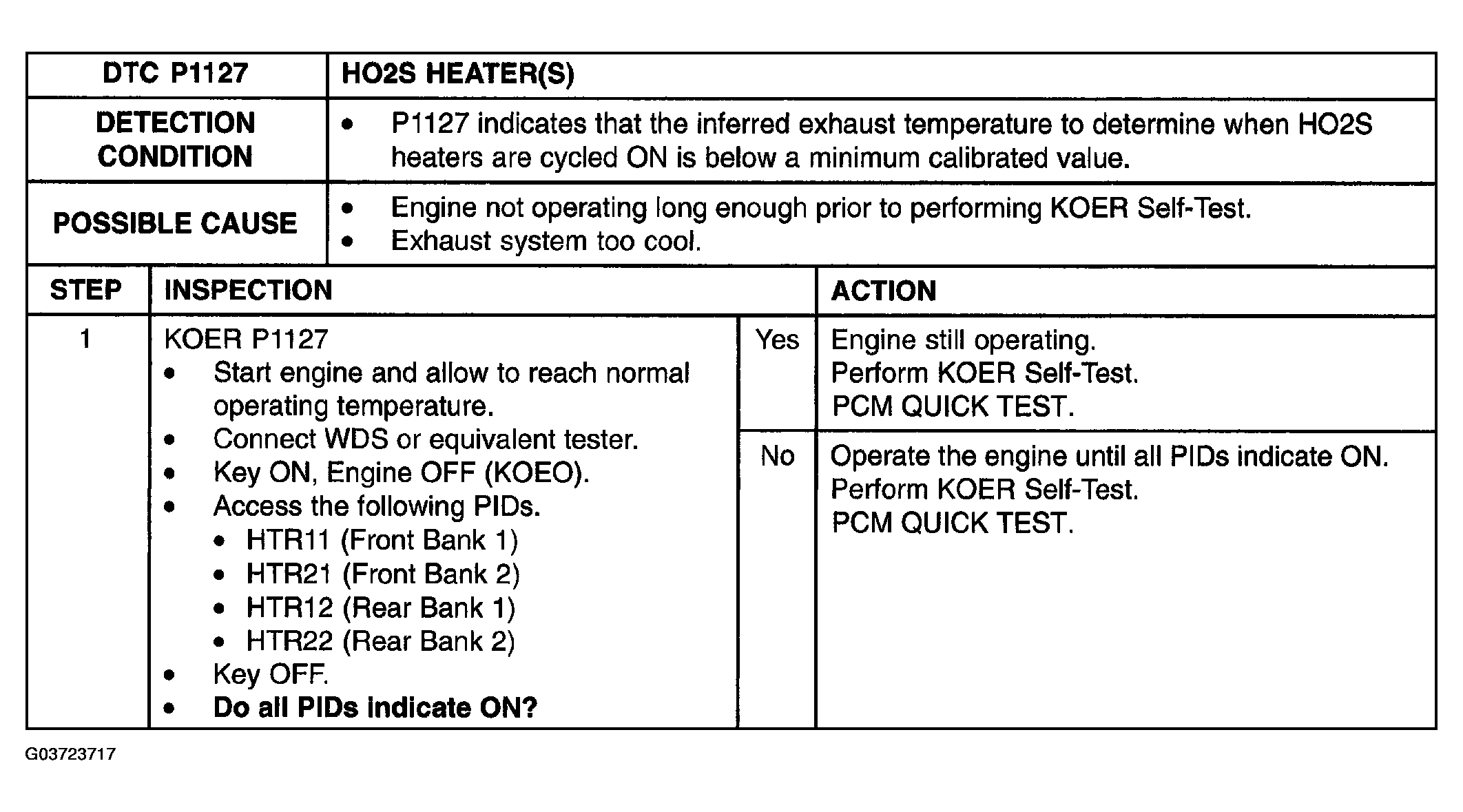

Fig 1: Ho2S Heater(S) Detection Condition Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
