Removal and Installation

Fig 1: Removing Upper Steering Column Shroud
G03726442Courtesy of MAZDA MOTORS CORP.
  1. Remove the upper steering column shroud.

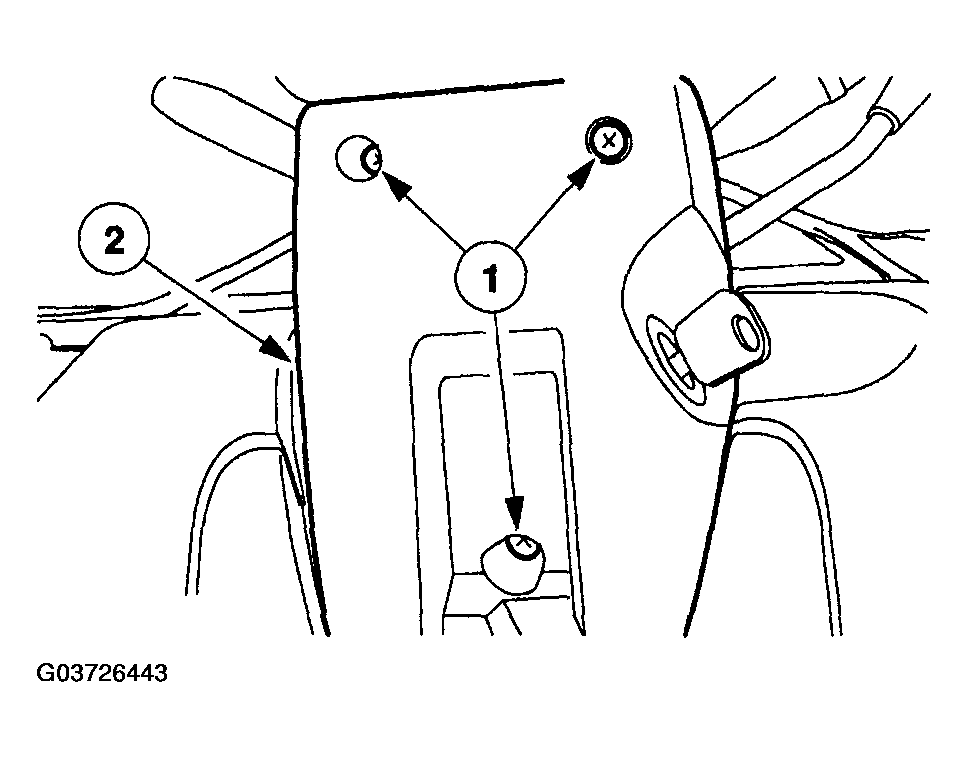

    Fig 2: Removing Lower Steering Column Shroud
    G03726443Courtesy of MAZDA MOTORS CORP.
  2. Remove the lower steering column shroud.
    1. Remove the screws.
    2. Remove the lower steering column shroud.
    Fig 3: Removing Lower Steering Column Shroud
    G03726444Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Lower the steering column to the lowest tilt position.
  3. Remove the ignition switch.
    1. Press the two tabs.
    2. Pull the ignition switch outward.
  4. To install, reverse the removal procedure.
