3 i, 2.0 F, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Control System Diagram
›
Except for California Emission Regulation Applicable Model
Except for California Emission Regulation Applicable Model

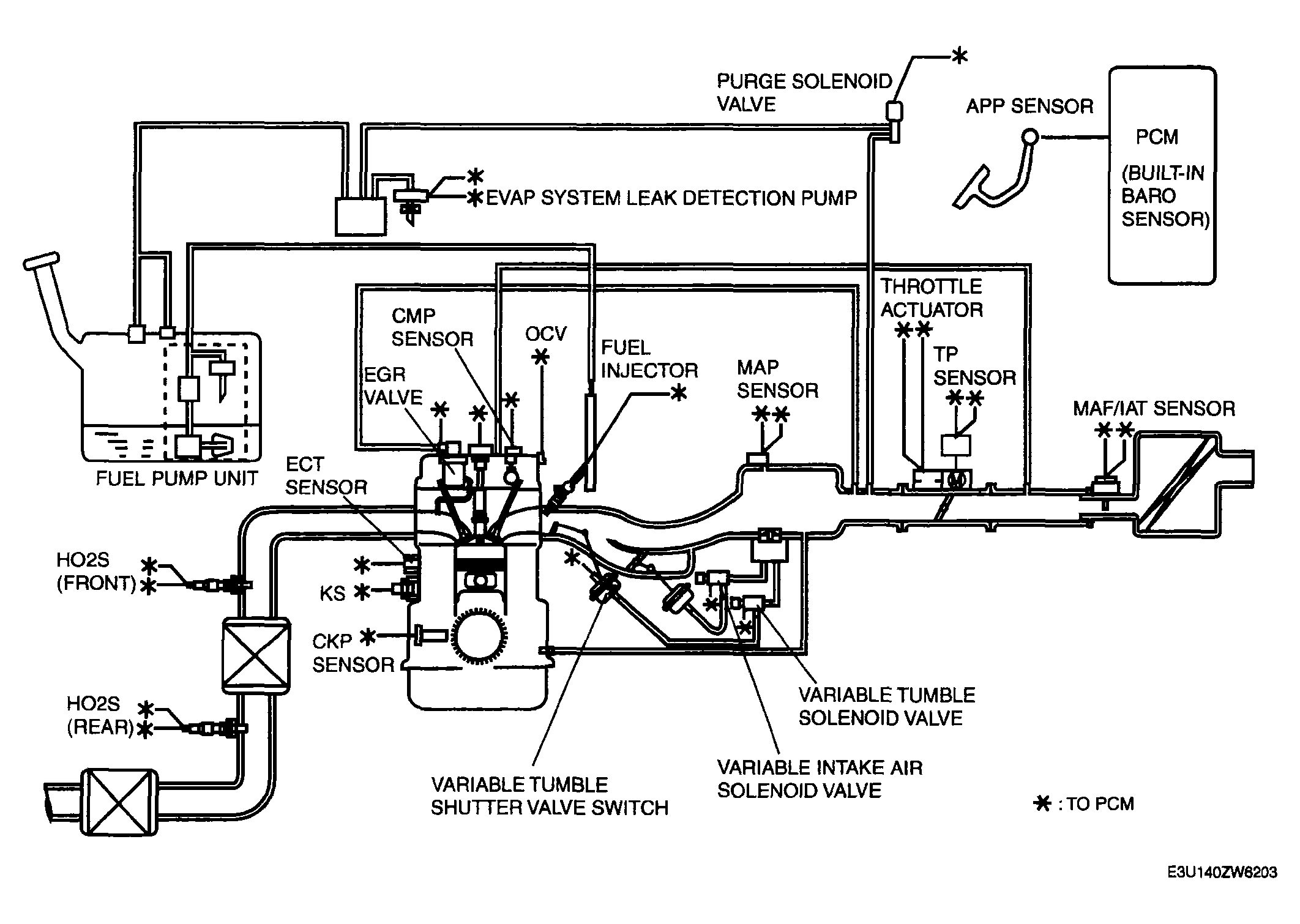

Fig 1: Control System Diagram [LF, L3] - Except For California Emission Regulation Applicable Model
