Glass/Windows/Mirrors Location Index
Glass/Windows/Mirrors Location Index

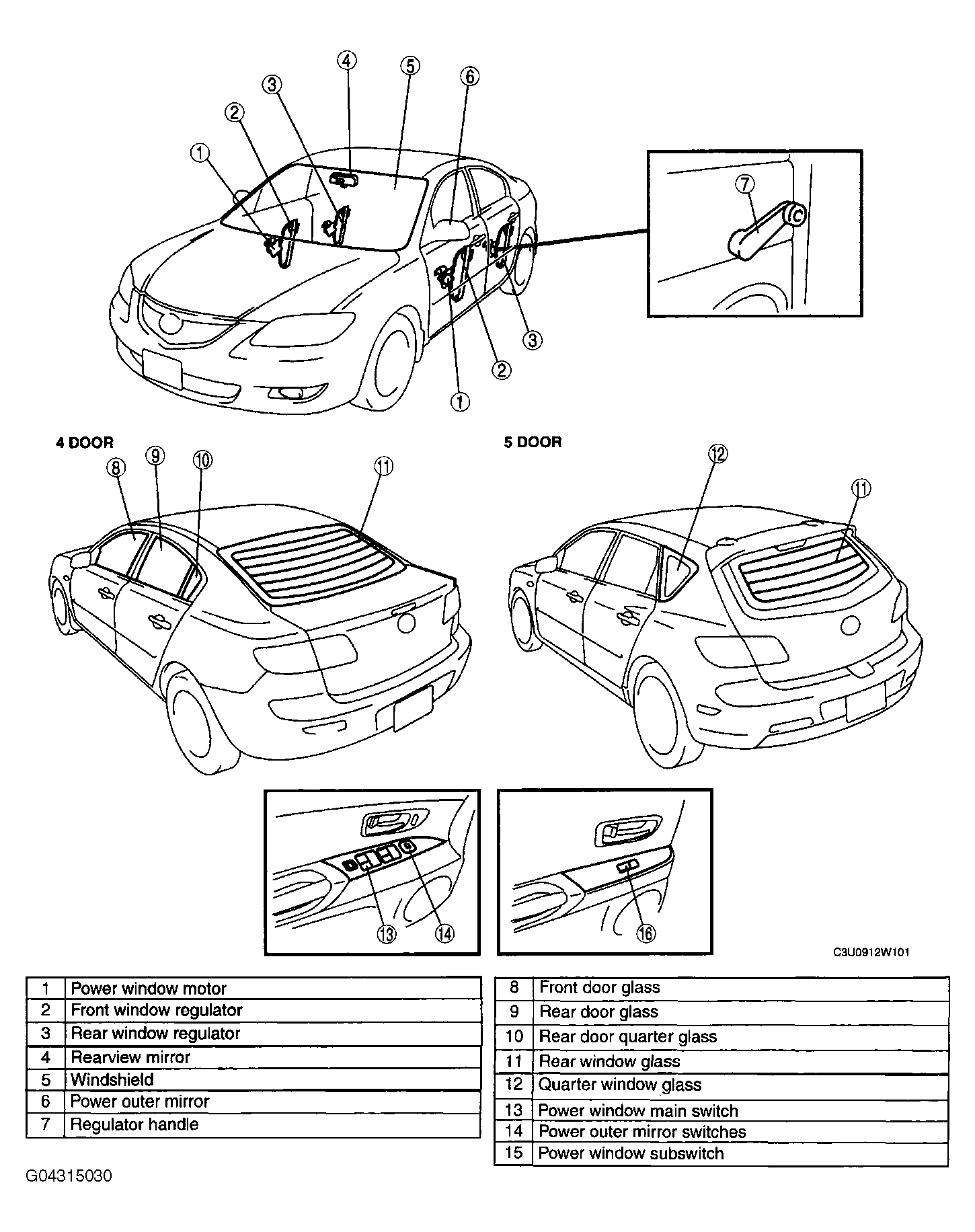

Fig 1: Identifying Glass/Windows/Mirrors Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
