Power Outer Mirror Switch Inspection

  1. Inspect for continuity between the power outer mirror switch terminals.
    • If not as specified, replace the power outer mirror switch.

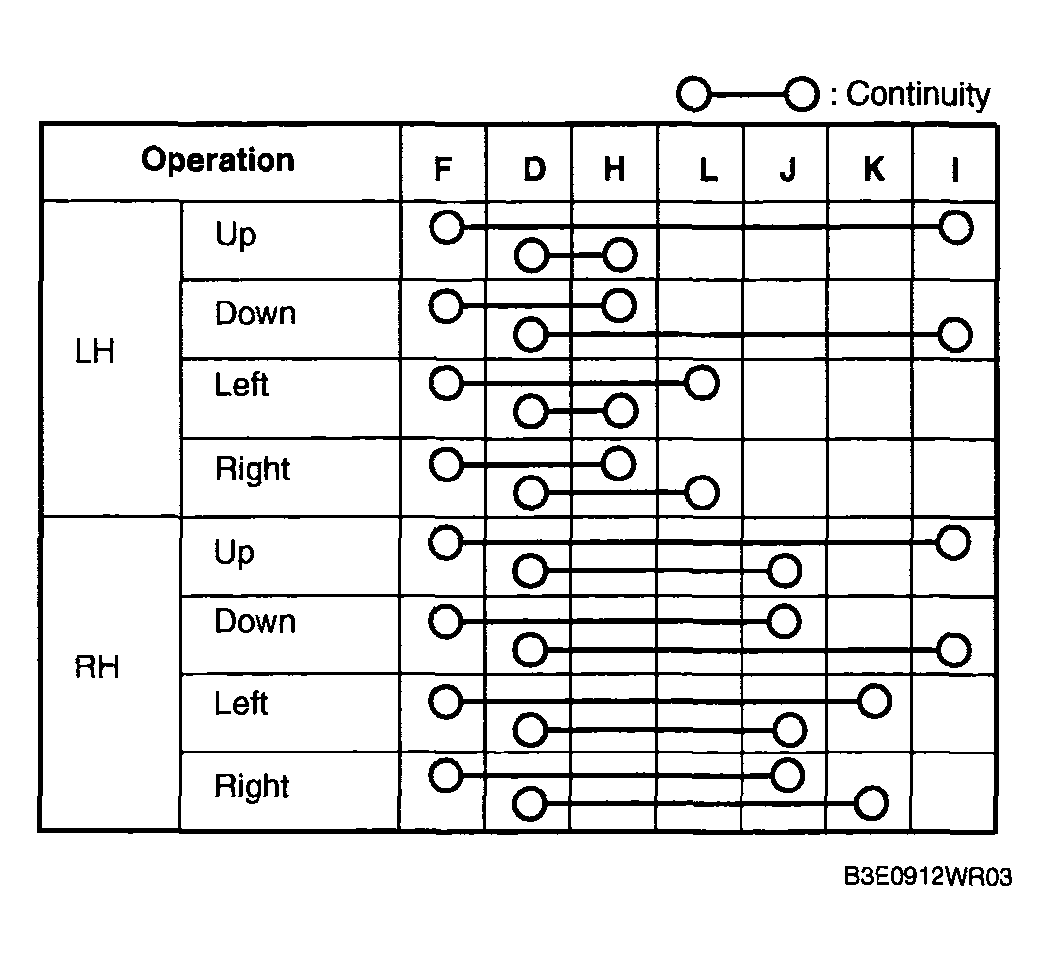

      Fig 1: Identifying Power Outer Mirror Switch
      G04315118Courtesy of MAZDA MOTORS CORP.

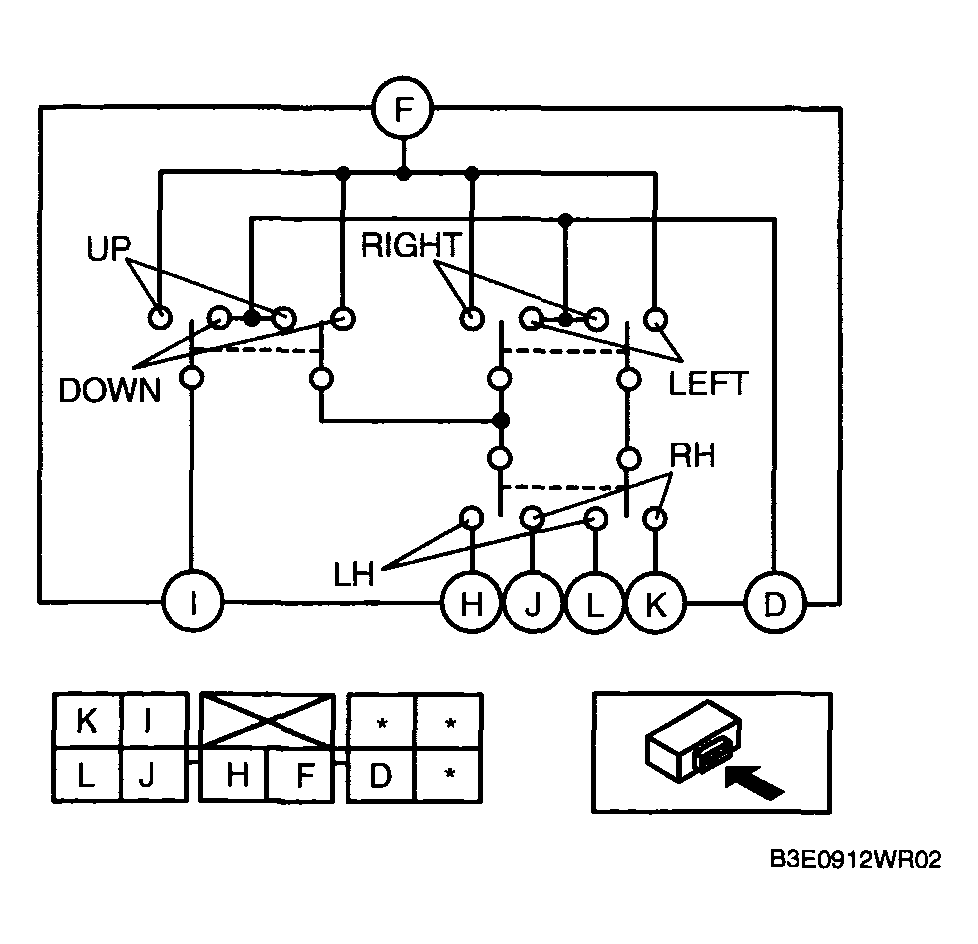

      Fig 2: Identifying Power Outer Mirror Switch
      G04315119Courtesy of MAZDA MOTORS CORP.
