Except For California Emission Regulation Applicable Model With LF MTX, L3

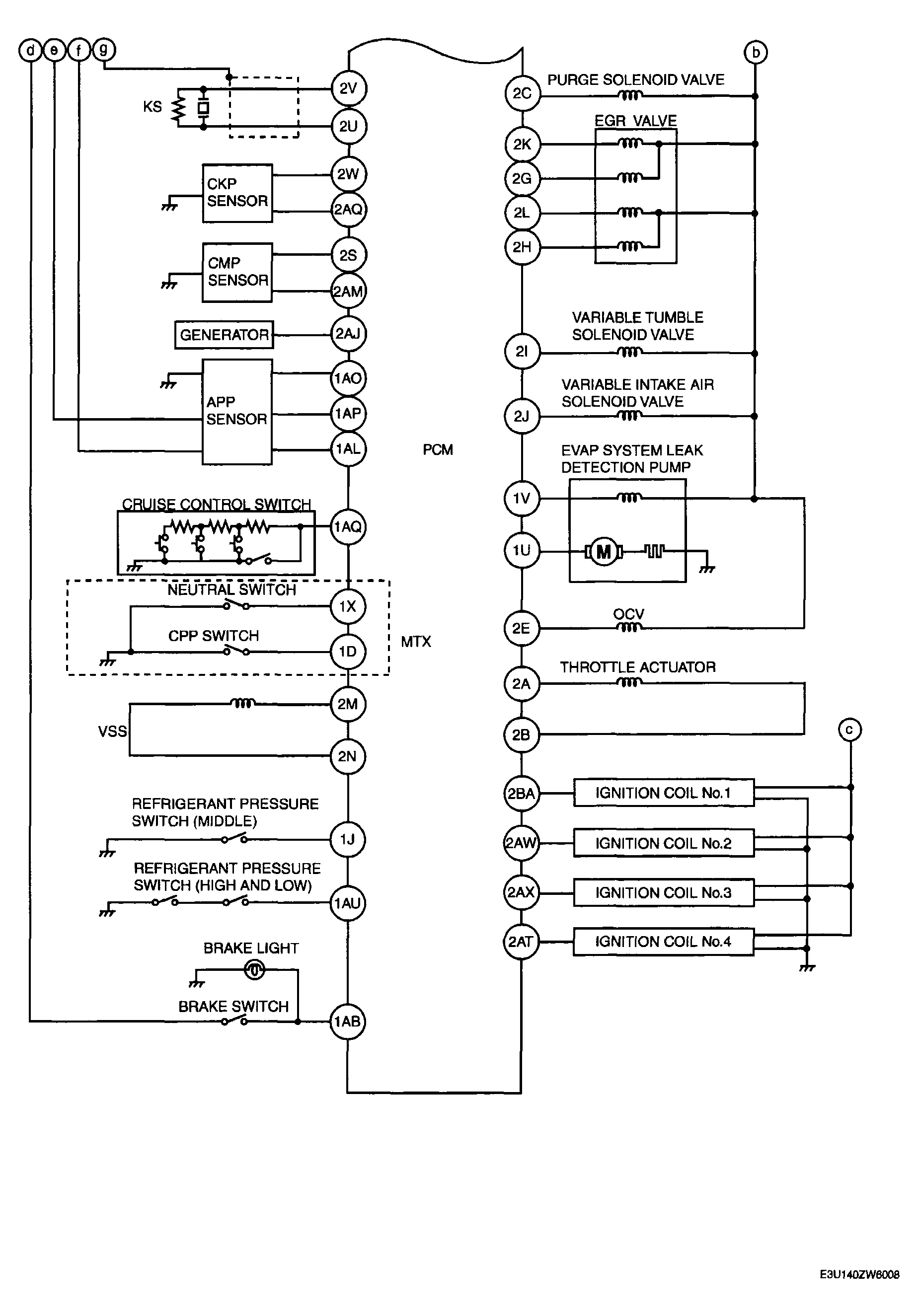

Fig 1: Control System Wiring Diagram [LF, L3] - Except For California Emission Regulation Applicable Model With LF MTX, L3 (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

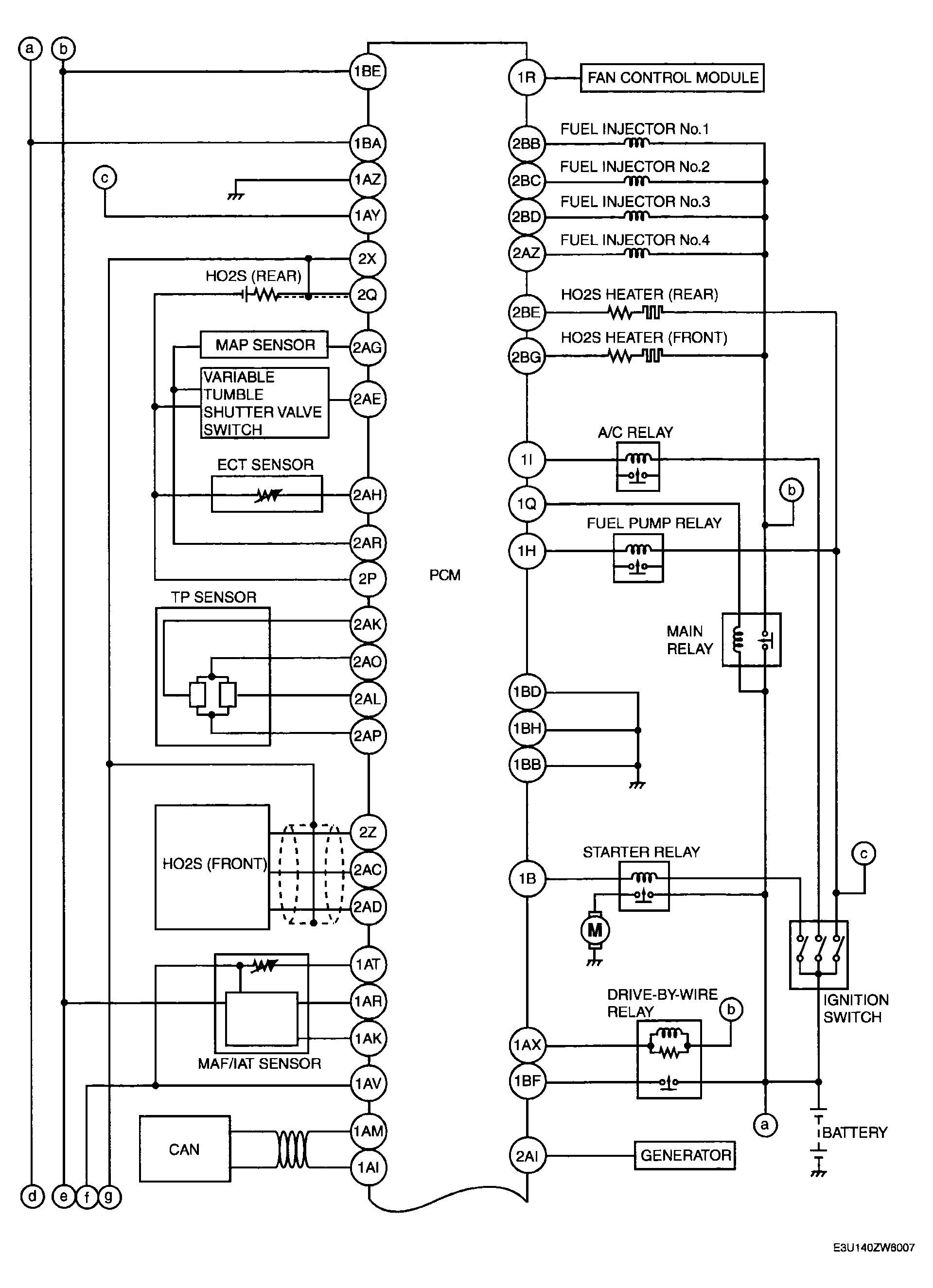

Fig 2: Control System Wiring Diagram [LF, L3] - Except For California Emission Regulation Applicable Model With LF MTX, L3 (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
