Rear Buckle Removal/Installation

  1. Remove the rear seat cushion. (See REAR SEAT REMOVAL/INSTALLATION ).
  2. Remove in the order indicated in the table.

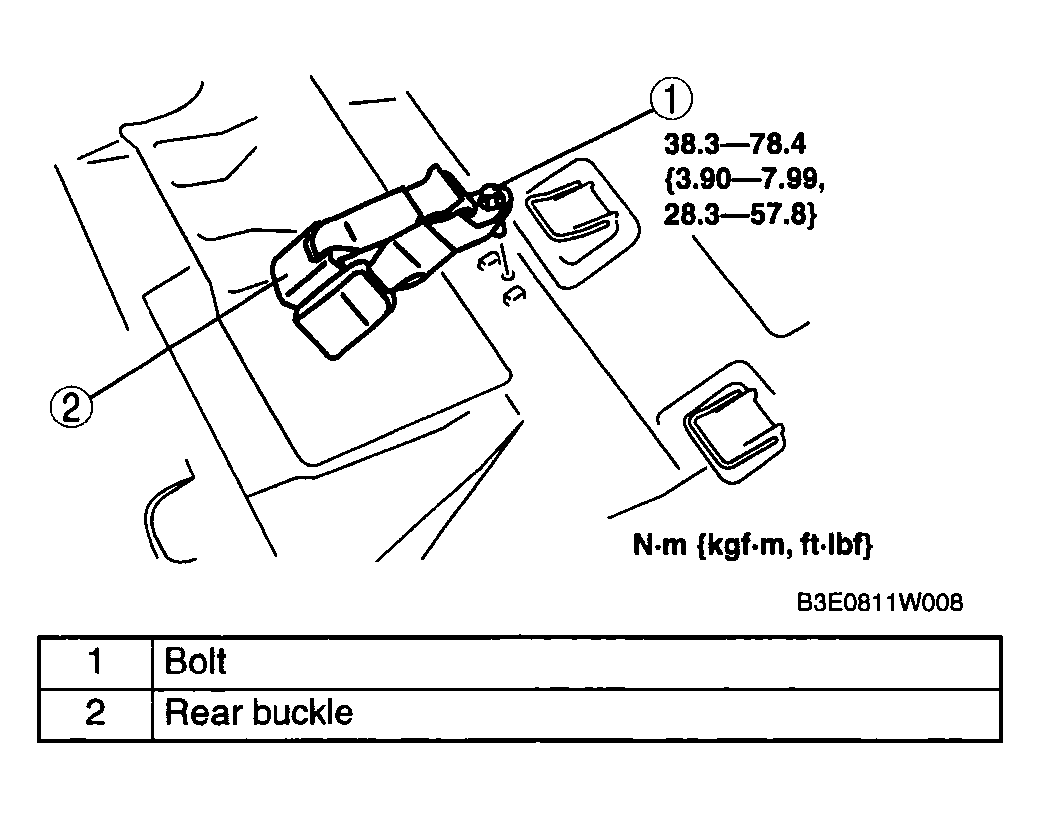

    Fig 1: Rear Seat Belt Buckle & Torque Specification
    G04314937Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
