On-Board Diagnostic [Engine Control System L3)
›
Control System Wiring Diagram
Control System Wiring Diagram

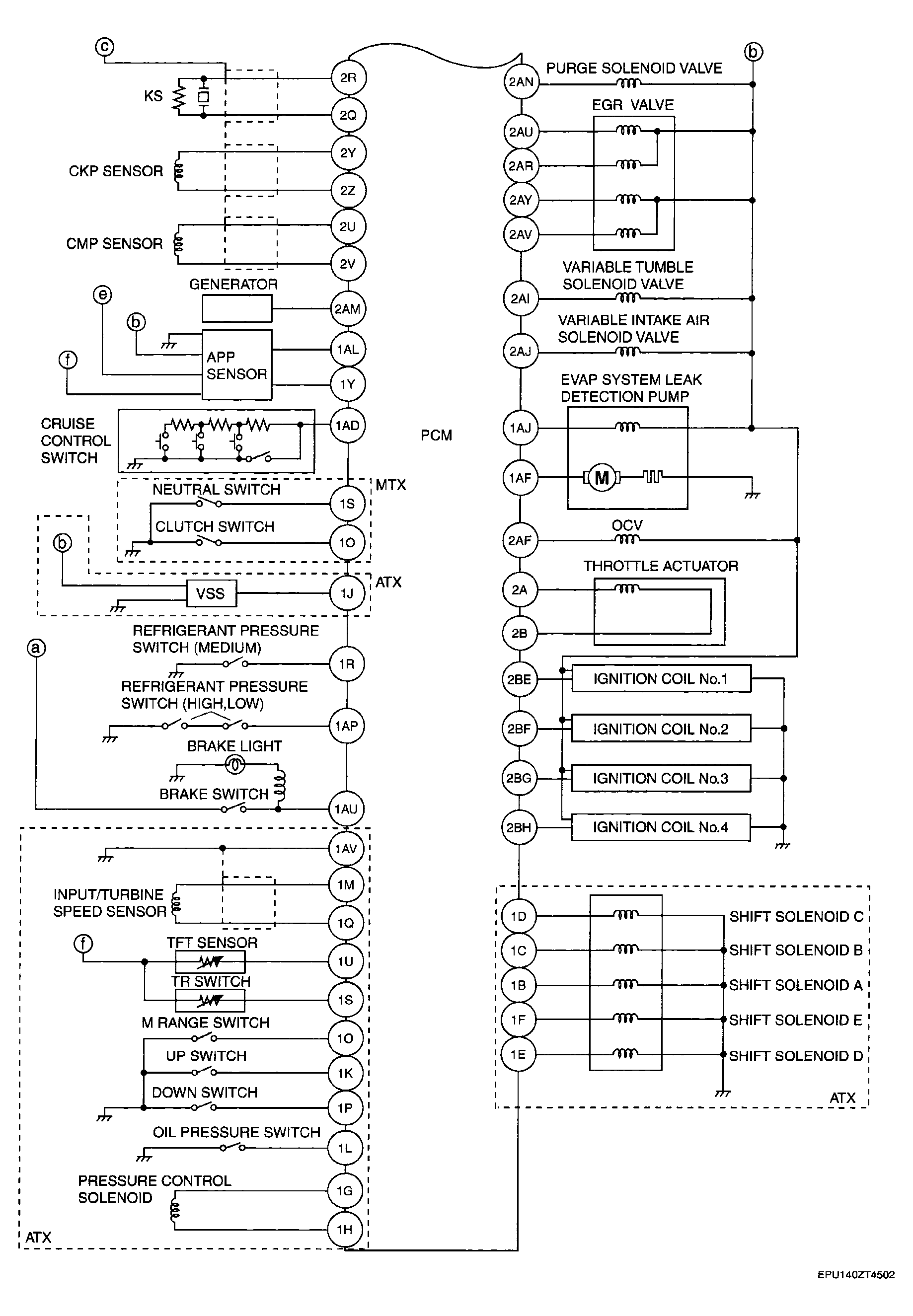

Fig 1: Control System Wiring Diagram [L3] (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

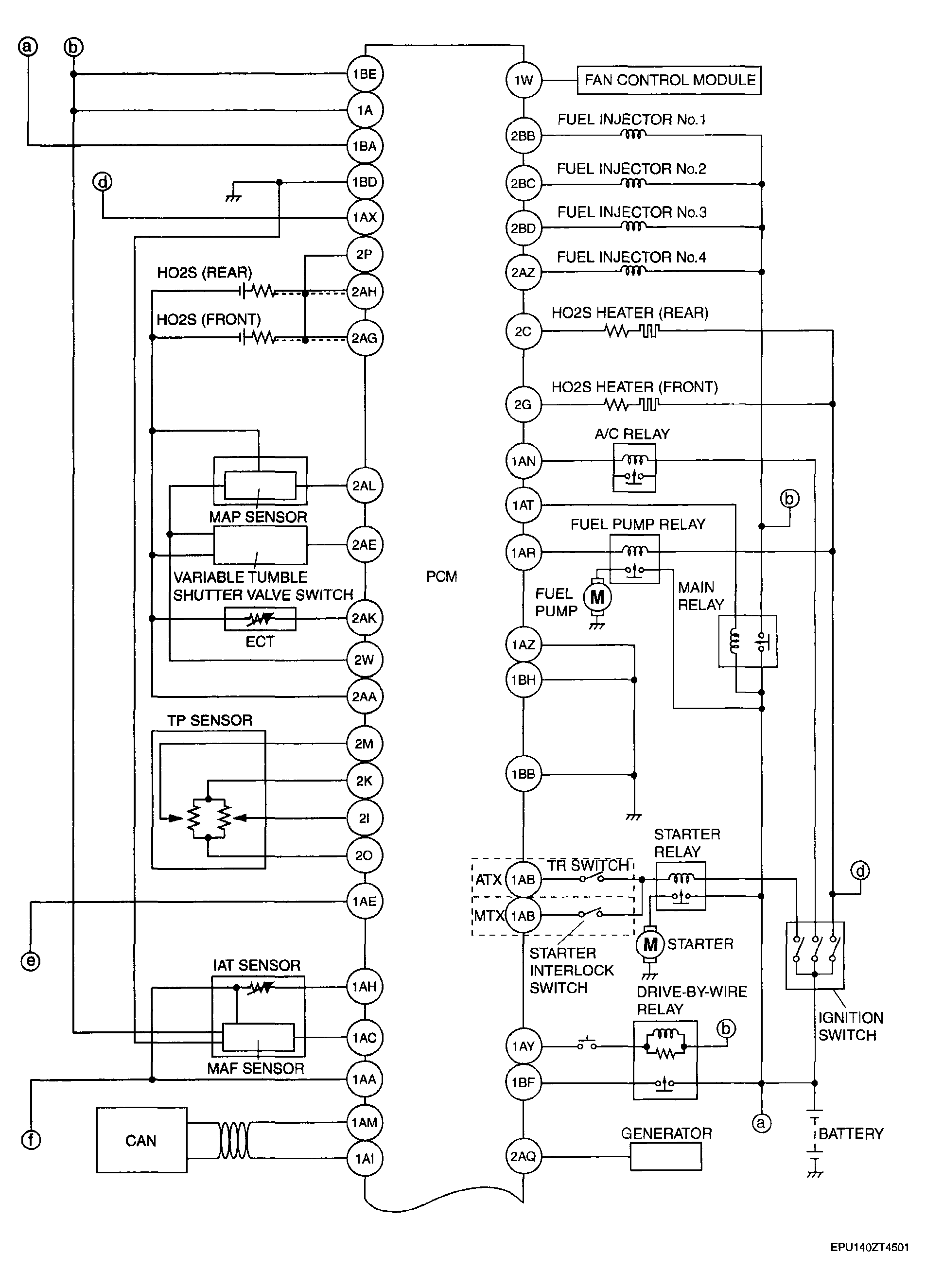

Fig 2: Control System Wiring Diagram [L3] (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
