Hood Latch And Release Lever Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.
  3. Adjust the hood. (See HOOD ADJUSTMENT ).

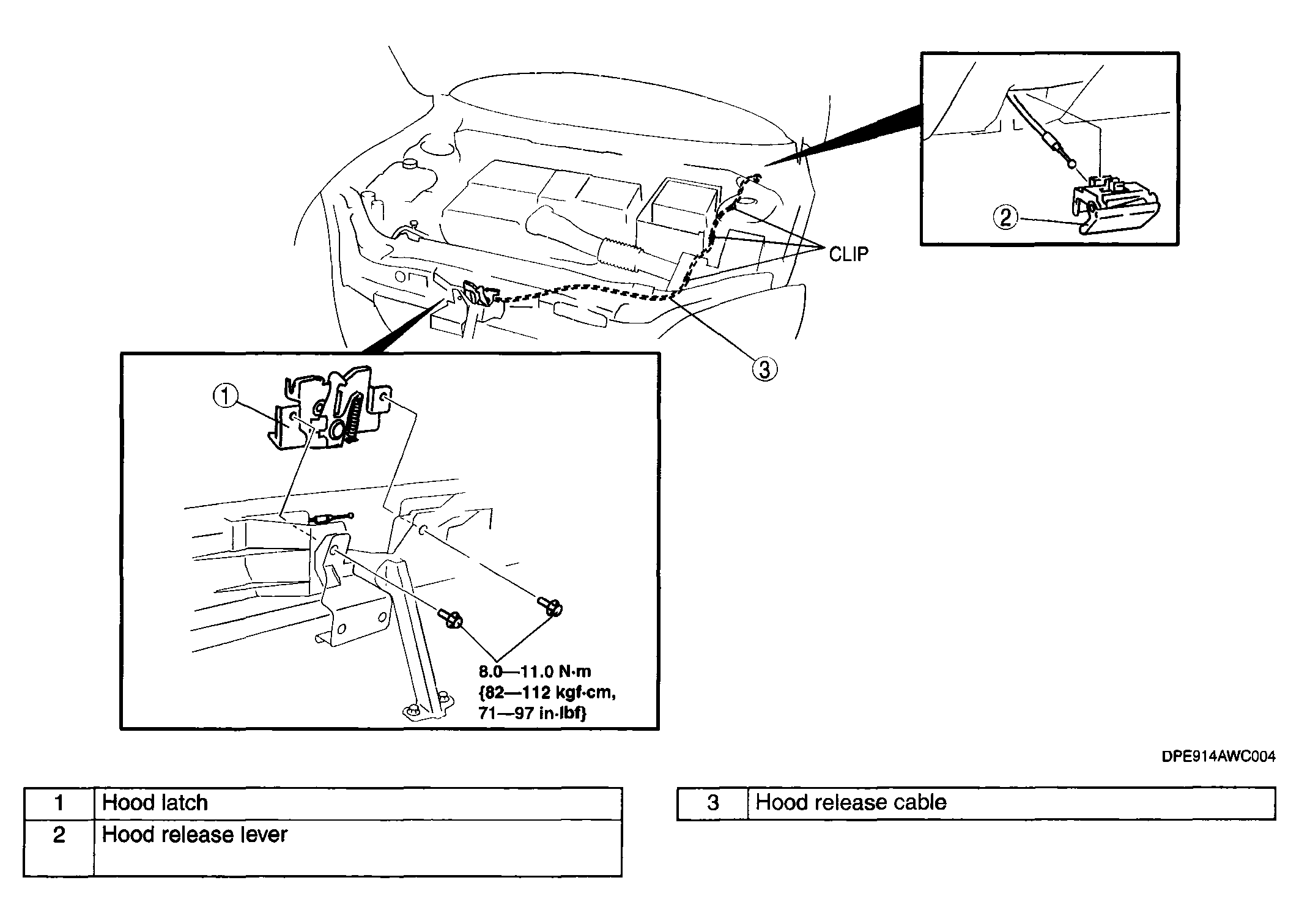

    Fig 1: Hood Latch & Release Lever Mounting Bolt Torque Specification
    G04317211Courtesy of MAZDA MOTORS CORP.
