Hood Latch Switch Inspection

  1. Open the hood.
  2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  3. Disconnect the negative battery cable.
  4. Disconnect the hood latch switch connector.
  5. Inspect for continuity between the hood latch switch terminals A and B.
    • If there is continuity, replace the hood latch.

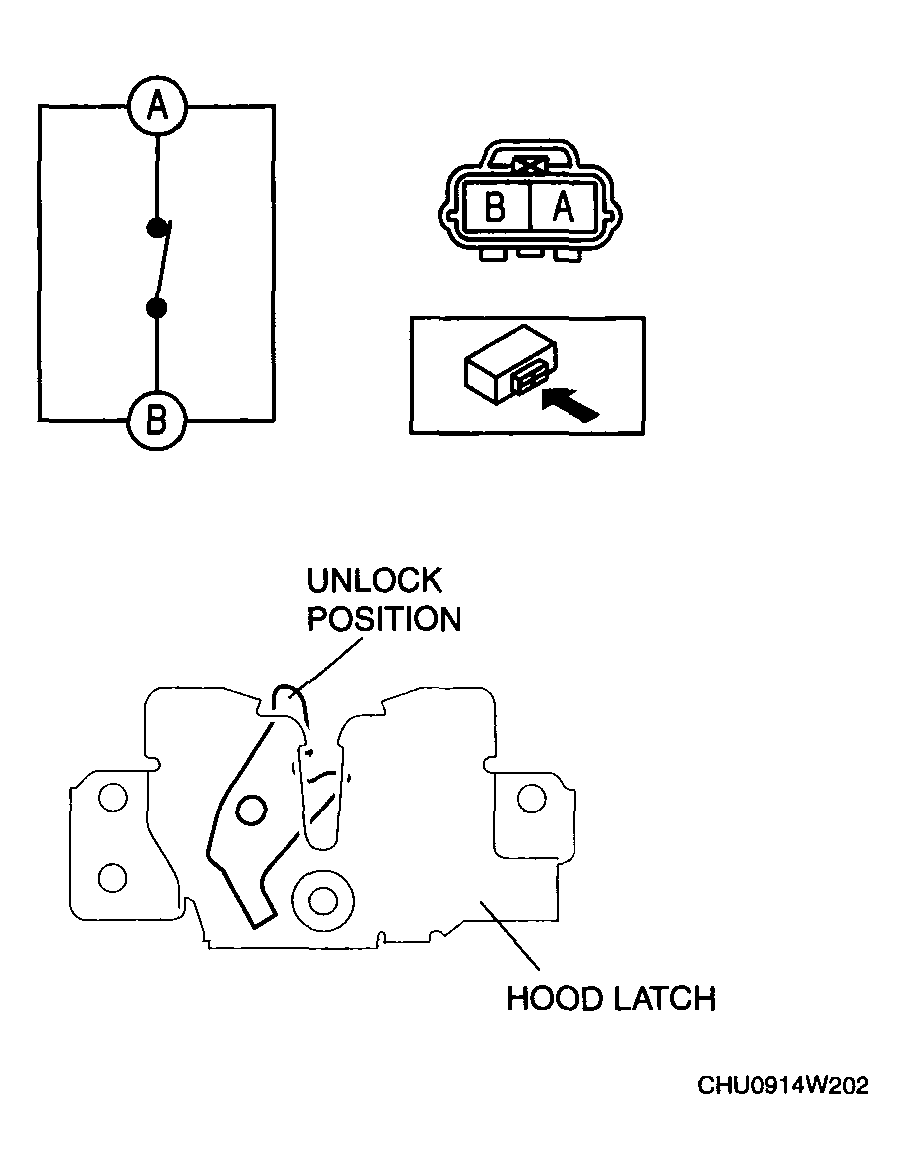

      Fig 1: Inspecting Continuity Between Hood Latch Switch Terminals A And B
      G04317213Courtesy of MAZDA MOTORS CORP.
  6. Lock the hood latch using a flathead screwdriver or equivalent as shown.
  7. Inspect for continuity between the hood latch switch terminals A and B
    • If there is no continuity, replace the hood latch switch.
      CAUTION:
      • After the inspection, unlock the hood latch. If closing the hood with the hood latch locked, the hood latch and/or hood striker may be broken.
        Fig 2: Identifying Lock Hood Latch Using Flathead Screwdriver
        G04317214Courtesy of MAZDA MOTORS CORP.
