5 Touring, 2.3 L
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Symptom Troubleshooting [Engine Control System L3)
›
Quick Diagnostic Chart
Quick Diagnostic Chart

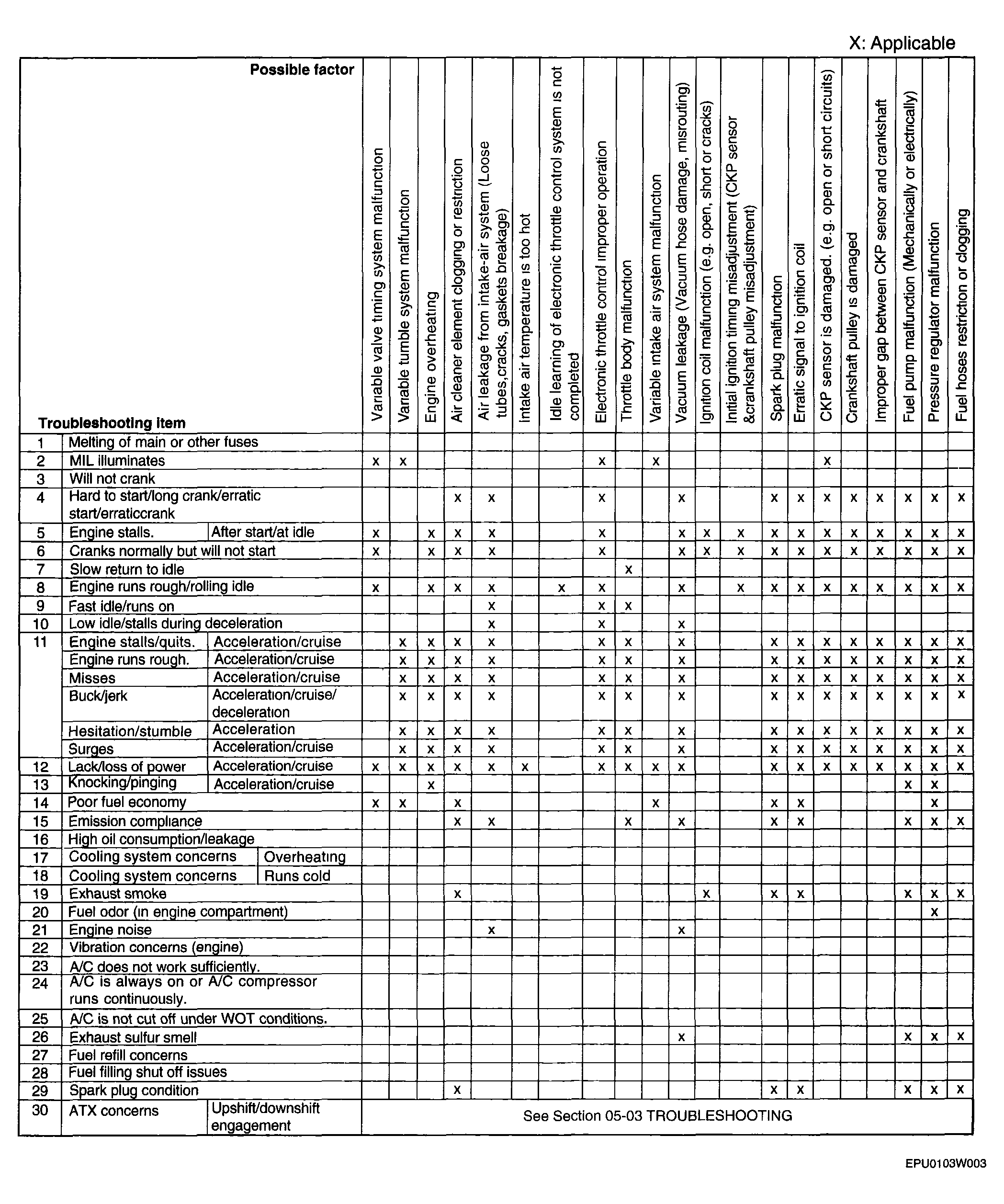

Fig 1: Quick Diagnostic Chart [L3] (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

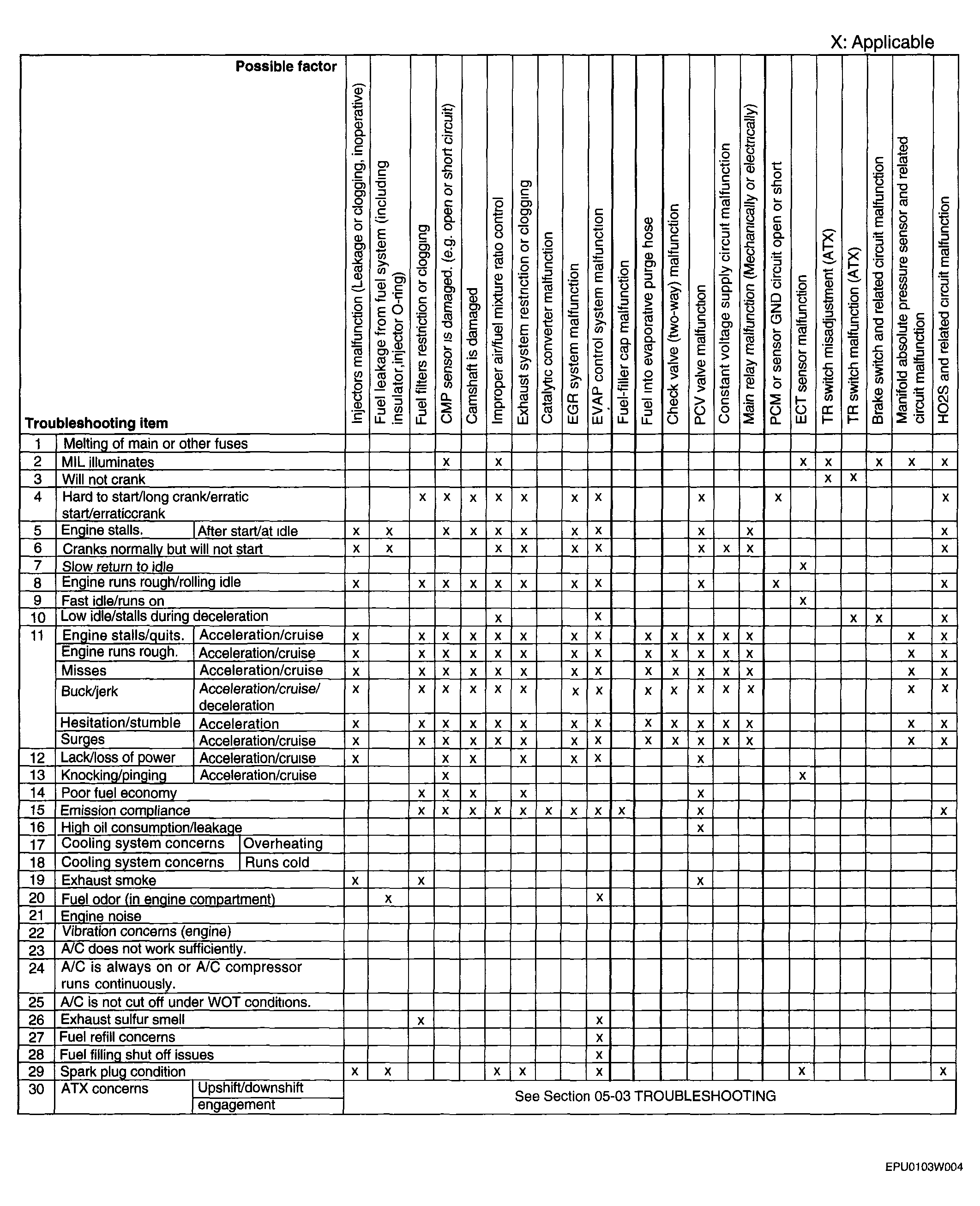

Fig 2: Quick Diagnostic Chart [L3] (2 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 3: Quick Diagnostic Chart [L3] (3 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 4: Quick Diagnostic Chart [L3] (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
