Selector Lever Component Inspection

  1. Remove the battery duct and battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] ).
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Side wall
    2. Selector lever knob
    3. Indicator panel
    4. Console
  4. Disconnect the selector lever component connector.
  5. Verify that the continuity is as indicated in the table.
    • If there is any malfunction, replace the selector lever component. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION ).
      Fig 1: Identifying Selector Lever Component Connector
      G04316570Courtesy of MAZDA MOTORS CORP.

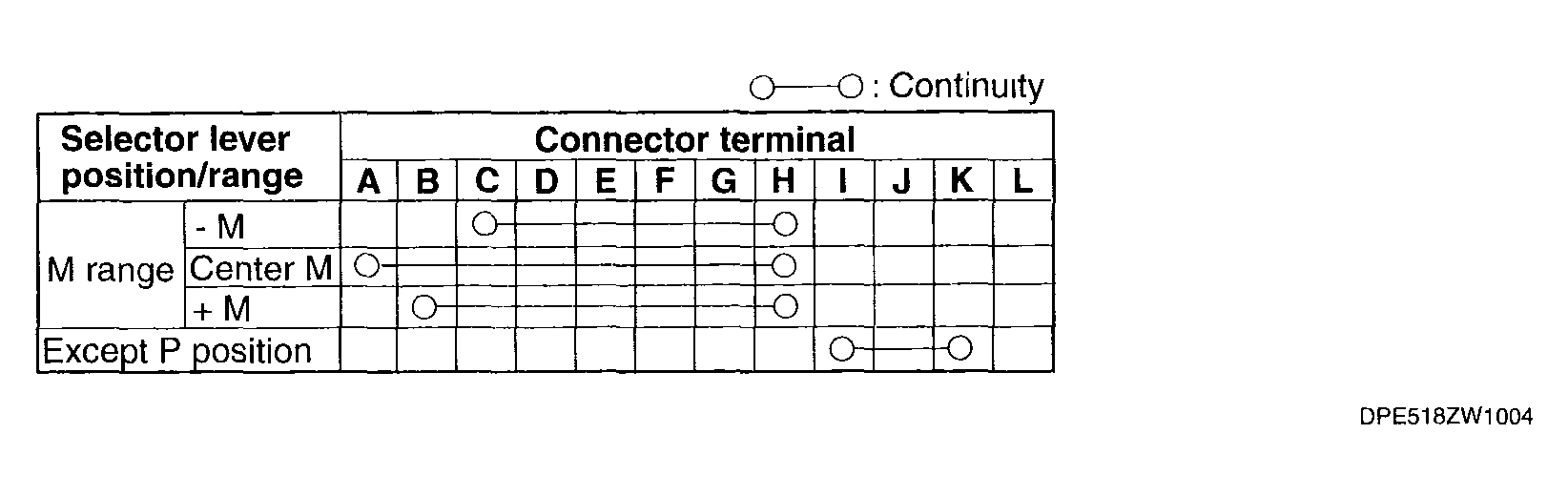

      Fig 2: Selector Lever Continuity Chart
      G04316571Courtesy of MAZDA MOTORS CORP.
