Body Control Module (BCM) Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front side trim. (Left side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION. )
  3. Remove the fuse block.
  4. Remove in the order indicated in the table.

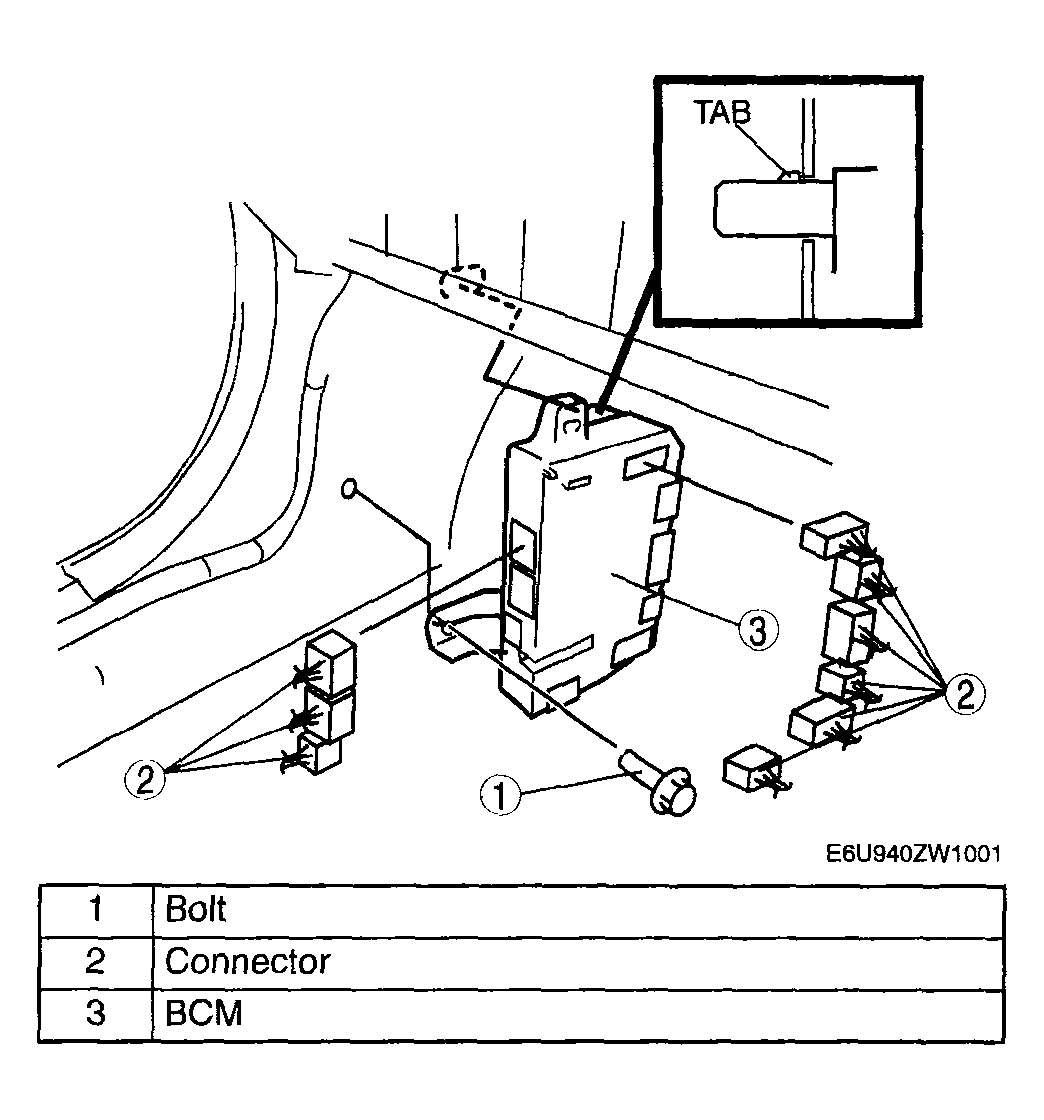

    Fig 1: Removing & Installing Body Control Module (BCM)
    G04327803Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
