Combined Sensor Initialization Procedure

  1. Set the WDS or equivalent to the DLC-2.
  2. Access the active command mode and select the YAWRATE, then follow the indication on the monitor.
  3. Select the LATACCEL and follow the indication on the monitor.

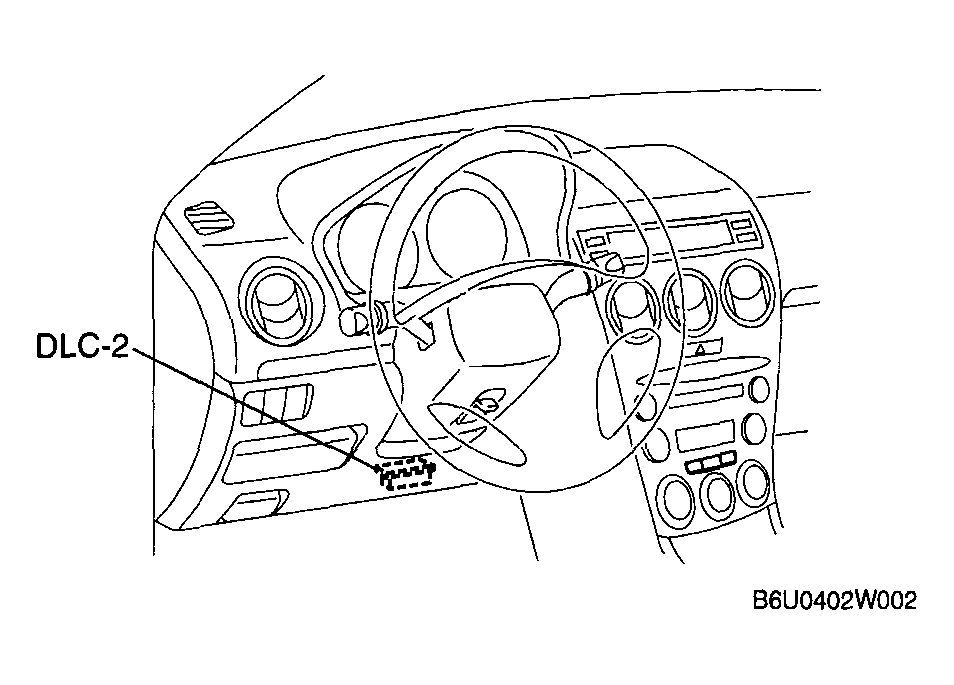

    Fig 1: Locating DLC-2 Connector
    G04325977Courtesy of MAZDA MOTORS CORP.
