Rear Abs Wheel-Speed Sensor Removal/Installation

Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION. )
Remove in the order indicated in the table.
Install in the reverse order of removal.

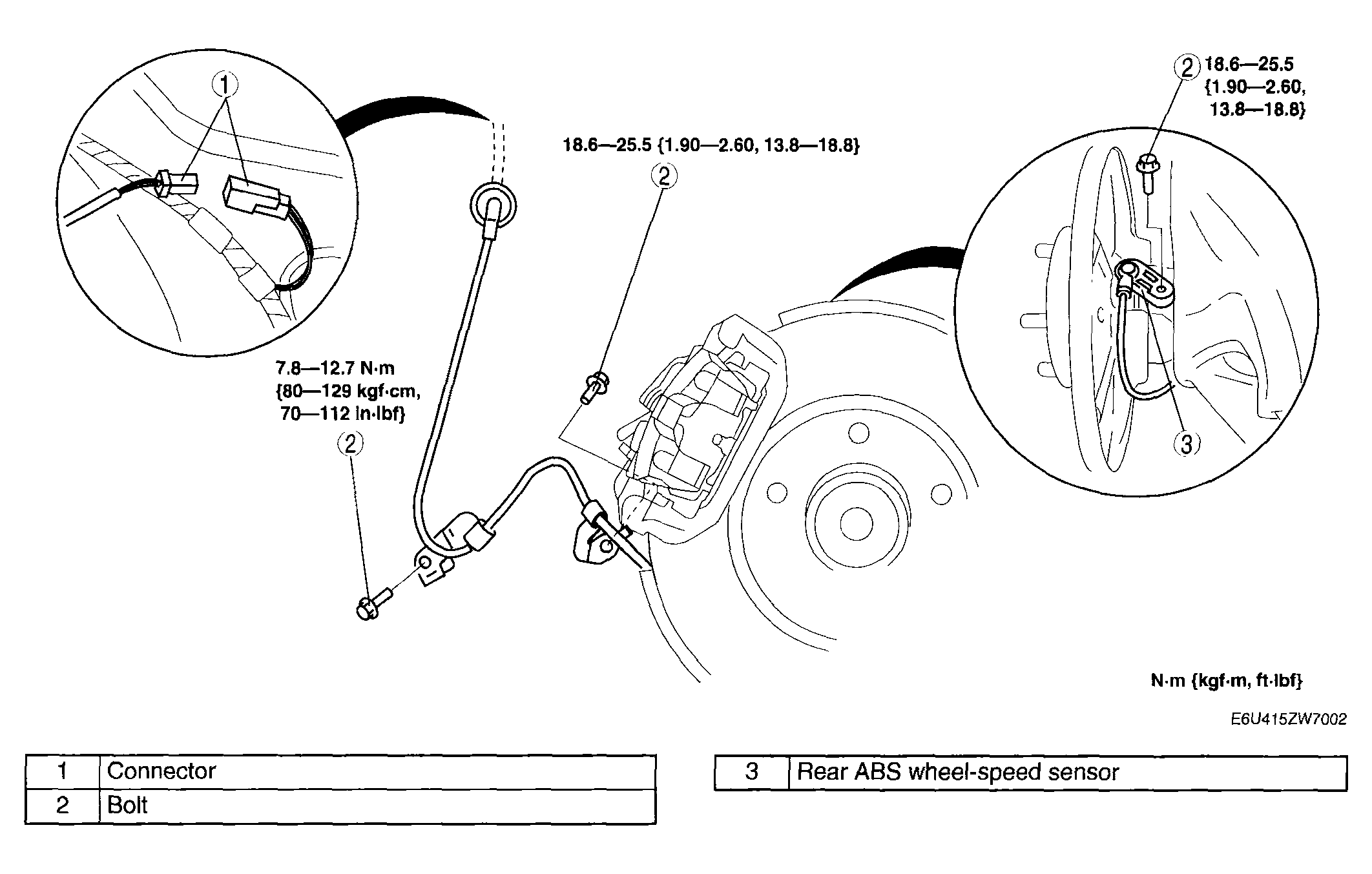

Fig 1: Rear ABS Wheel-Speed Sensor & Torque Specification
Courtesy of MAZDA MOTORS CORP.
