Continuity Inspection

Disconnect the starter interlock switch connector.
Verify that the continuity is as indicated in the table.
- If there is any malfunction, replace the starter interlock switch.

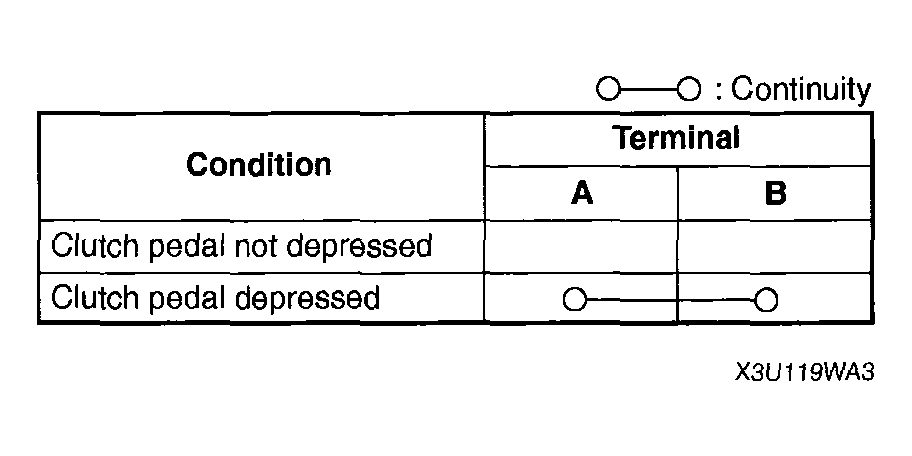

  Fig 1: Checking Starter Interlock Switch Continuity
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Identifying Starter Interlock Switch Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
