Control System Component Location Index

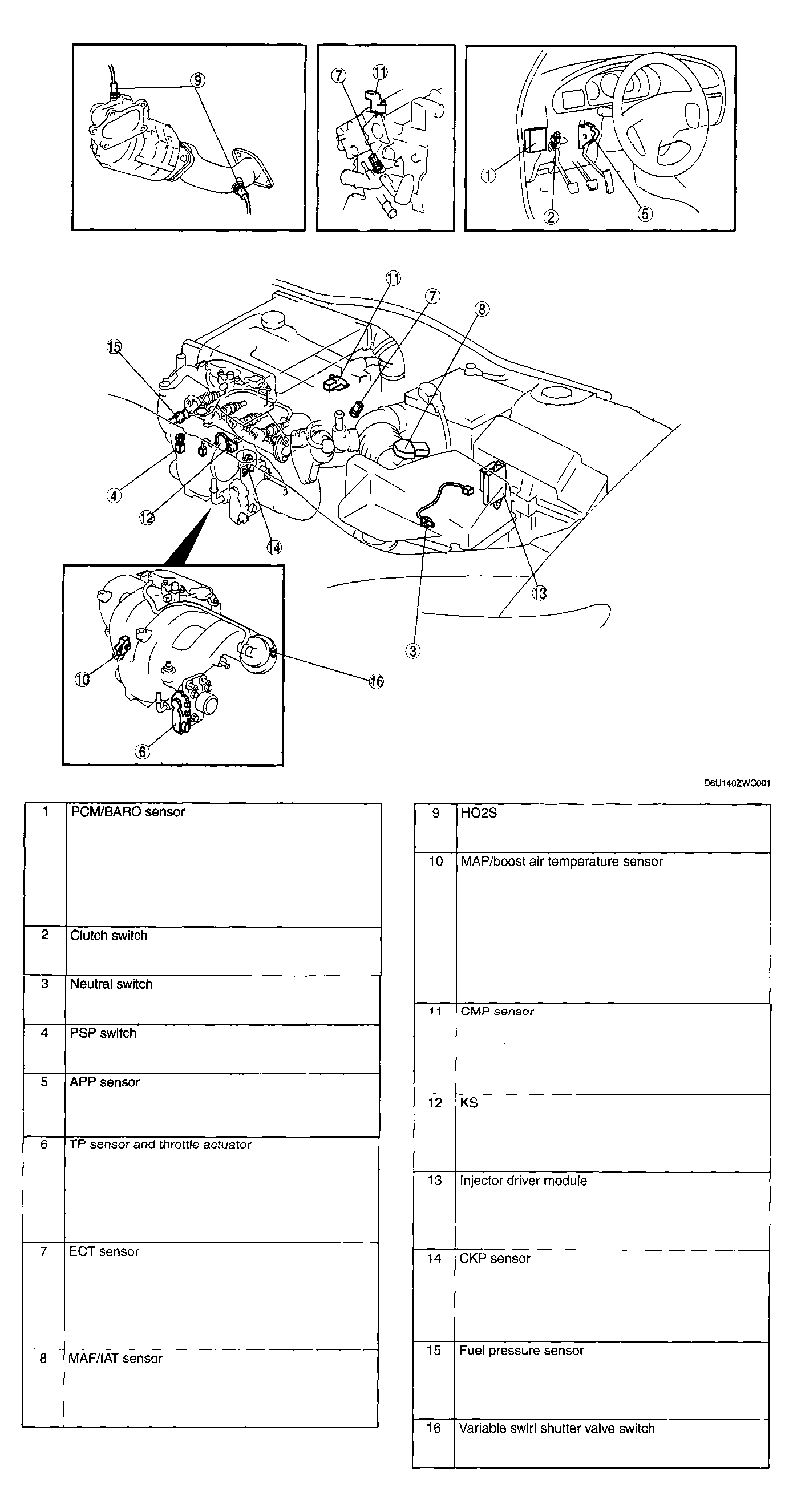

Fig 1: Identifying Control System Component Locations [L3 With TC]
G04325201Courtesy of MAZDA MOTORS CORP.
