Engine Control System (L3 With TC)
›
Control System Diagram
Control System Diagram

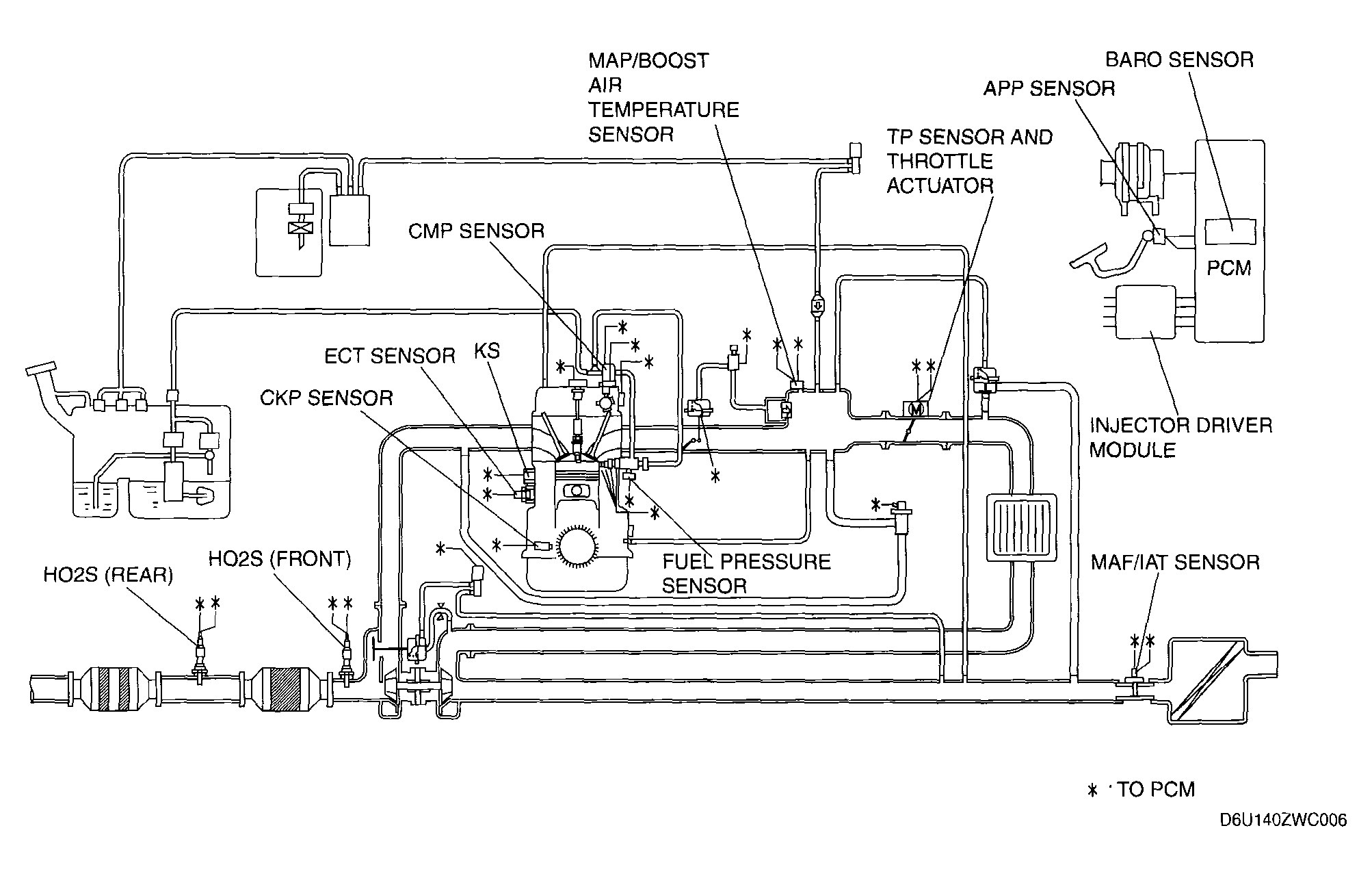

Fig 1: Control System Diagram [L3 With TC]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
