Control System Wiring Diagram

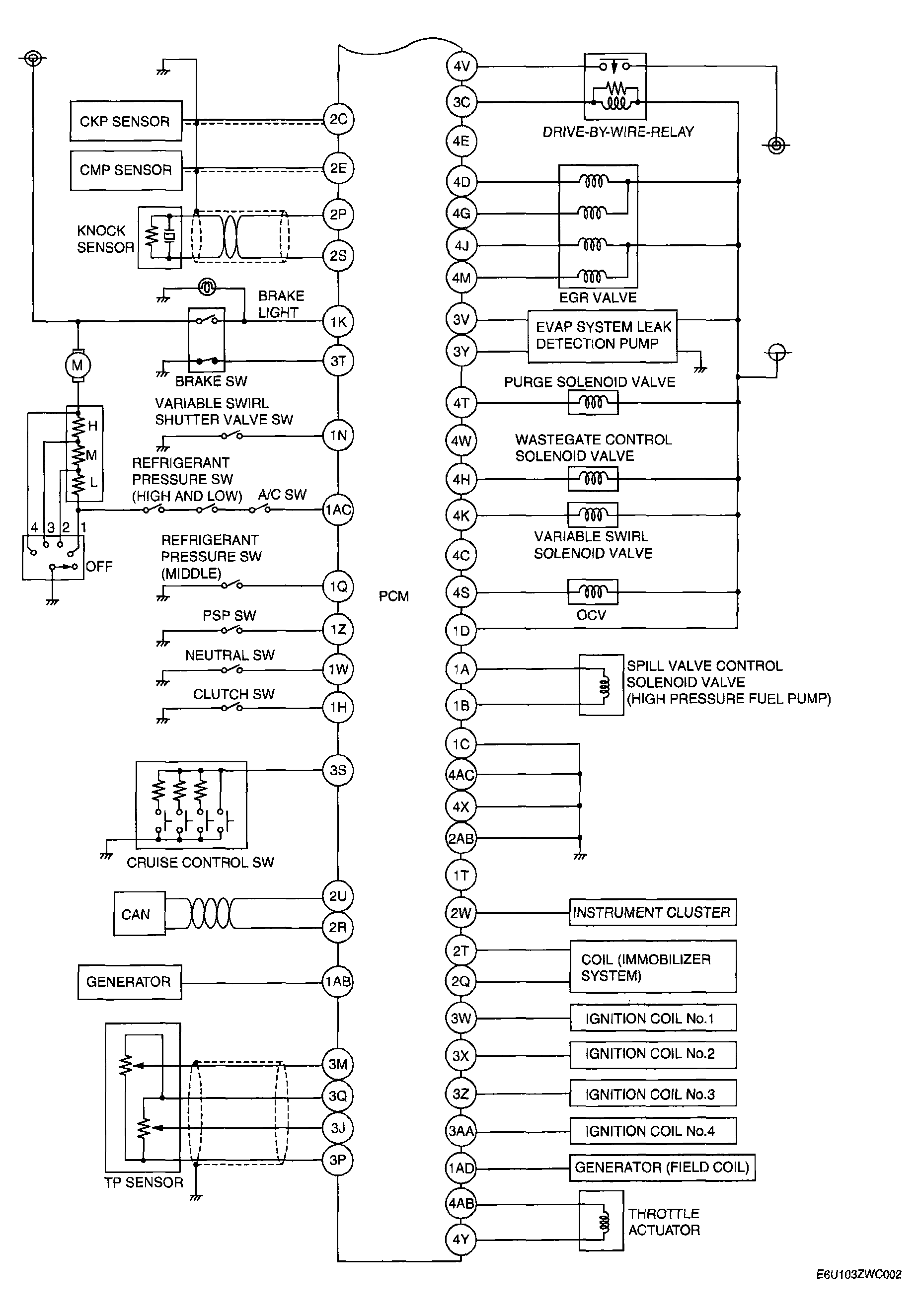

Fig 1: Control System Wiring Diagram [L3 With TC] (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

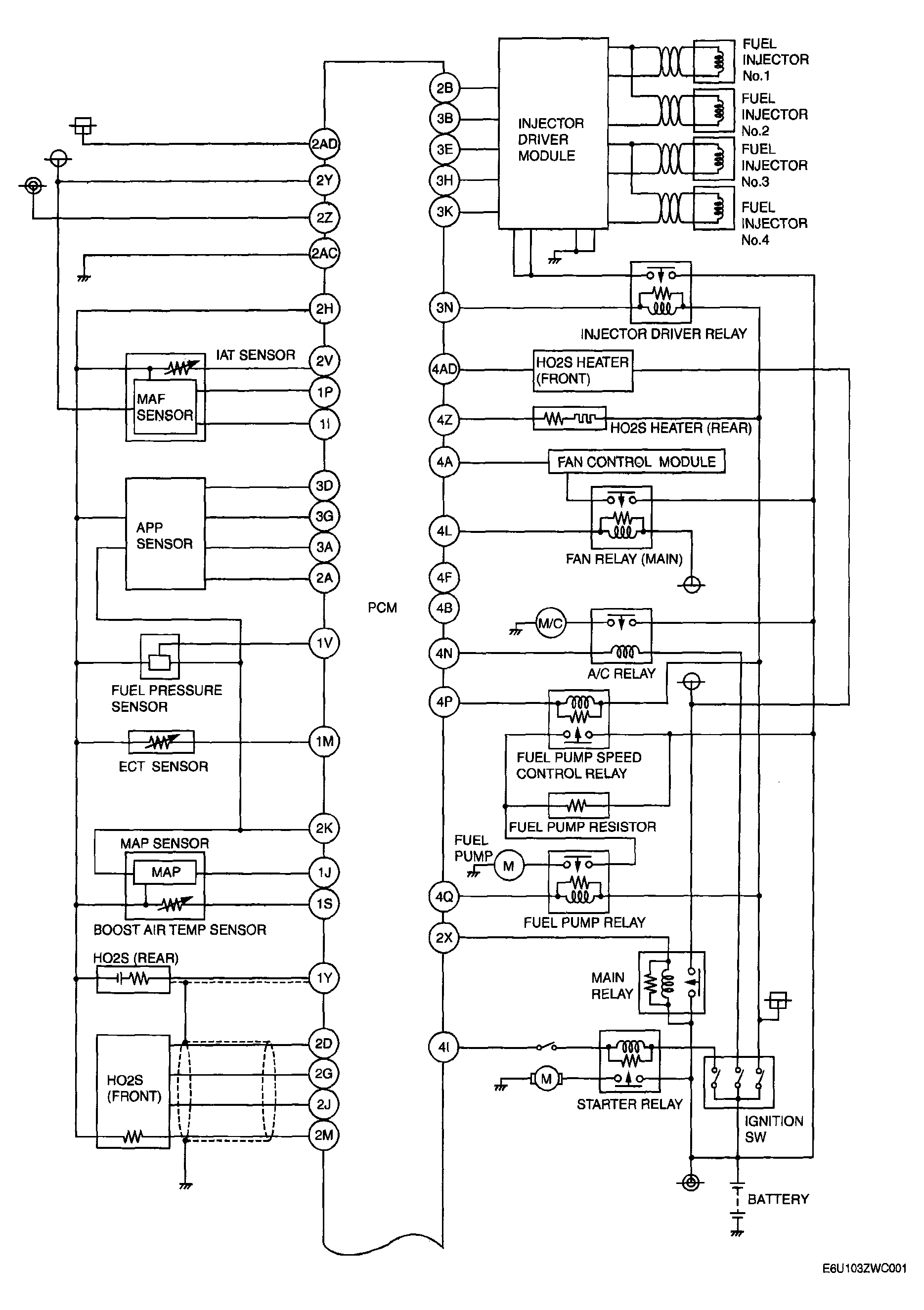

Fig 2: Control System Wiring Diagram [L3 With TC] (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
