- Remove the battery and battery tray.
- Remove the air cleaner component.
(See
INTAKE AIR SYSTEM REMOVAL/INSTALLATION [L3 WITH TC].
)
- Remove the dashboard completely.
(See
DASHBOARD REMOVAL/INSTALLATION.
)
- Remove the SAS control module.
(See
SAS CONTROL MODULE REMOVAL/INSTALLATION.
)
- Remove the climate control unit. (See
CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [L3 WITH TC].
)
- Remove the rear heat duct. (See
REAR HEAT DUCT REMOVAL/INSTALLATION [L3 WITH TC].
)

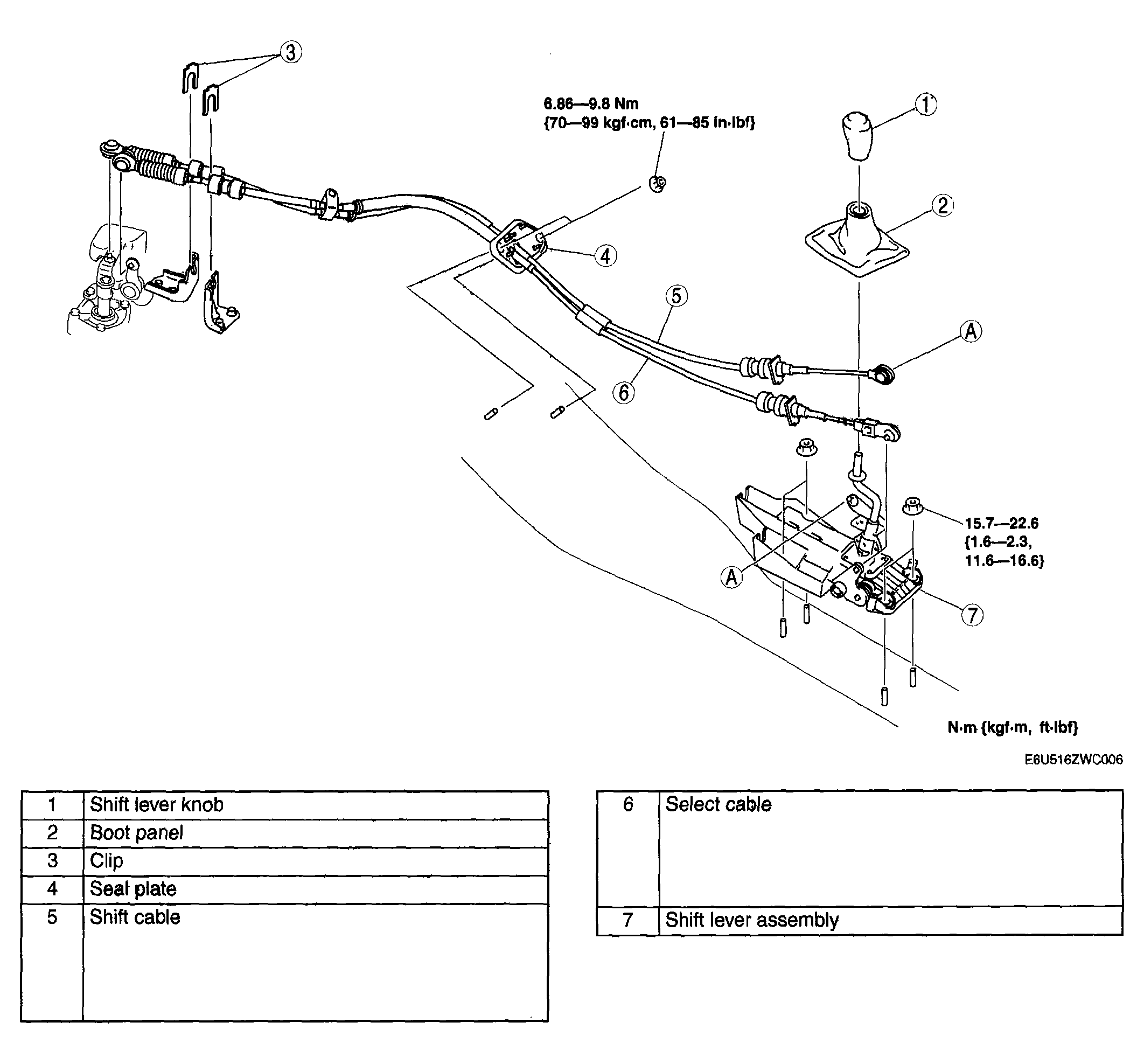

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, verify that the shift lever can be shifted smoothly into each position.
Courtesy of MAZDA MOTORS CORP.
